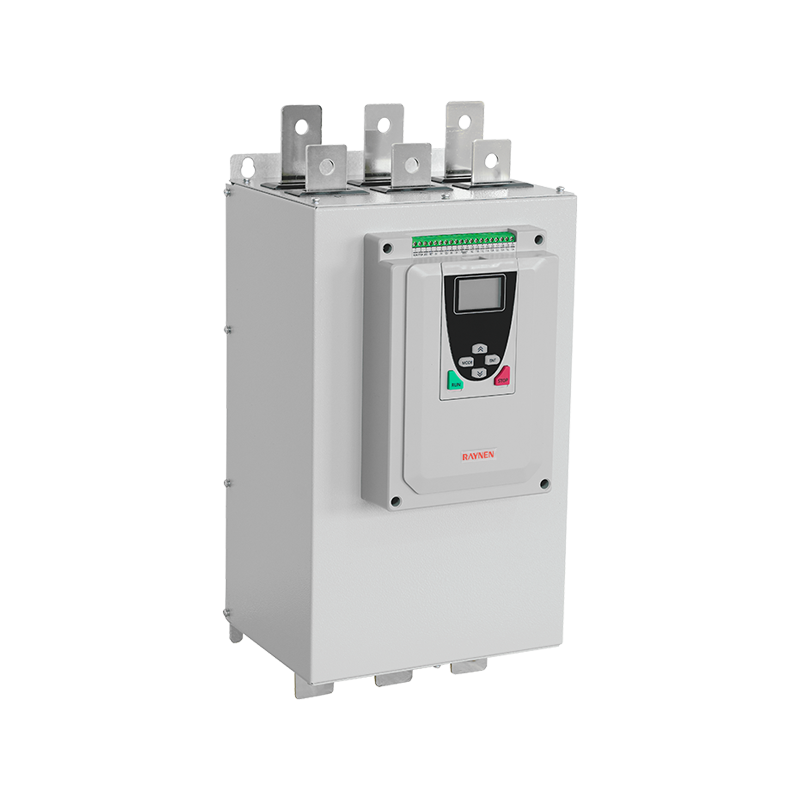

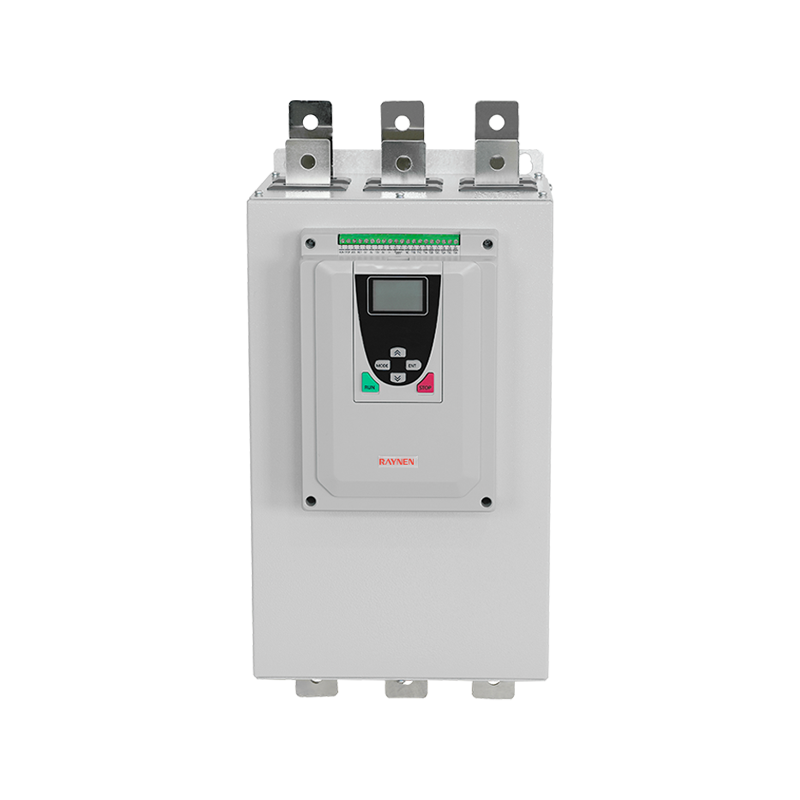

Product Summary
Specifications
 | Parametric | |
| Model | RSE-T3-75-E ~ RSE-T3-115-E | |
| Bypass Type | Externi bypass genus | |
| Voltage | 380V | |
| Acta motoris virtutis (kW) | 75/90/115 | |
| Rated output current (A) | 150/180/230 | |
| Dimensiones (mm) | 378* 192* 227 | |
| Installation size (mm) | 308*150 | |
Product Features
| Excellens Quality |  | Remota potestate |  |
| • Omnia indicia perficiendi sunt sedulo disposita et exacte probata • Omnia gradus tutelae • Facile est instituere et integrare in systematis potestate | • Communicatio functionis pro remota potestate, vigilantia et moderamine functionum adhibentur • Per RS485 vexillum interfaciei, cum PC et PLC coniungere potes | ||
| Bypass contactor, damnum reducere |  | Commodum Keypad |  |
| • In fine Satus, bypass contactor incipit • Calor intra principium reducitur et iactura elevat • Omnia munera tuentur, efficax custodiunt (super-calor, super-onus, un-der-onus, etc.) | • Simpliciter utere & intuitivis operari keypad ut motor notitia accommodent • keypad Anglica operationem faciliorem reddit | ||
| Minimum damnum consilium |  | Commodius |  |
| RDS potest continuo emendare condicionem operantem motoris per vias sequentes: • Aptativum technologiae moderamen molle principiurae adoptatur ut velocitas motoris sit curva leves et continuae et monotonicae in quolibet statu ascendentes, absque velocitate inflexionis punctum • Reducit passiones mechanicas & hydraulicas • Reducere onus potestatis distributionis systematis (cacumen voltage, overcurrent) | • RS485、Modbus communicationis • Superius wiring, facile coniungere | ||
| Lorem potestatem |  | ||
| • Applicare pro late potentia copia range generantium | |||
Recta per Connection Simplifies Wiring
Wiring et Terminals
Exemplar Nomenclature
Electio Tabula
| Exemplar (380V) | Acta motricium virtutis ( kW ) | Ego de (A) | Dimensiones H*W*D (mm) | Installation size (mm) | |
| H1* W1 | Apertura | ||||
| RSE-T3-7-E | 7.5 | 15 | 296* 170* 169 | 265*155 | M6 |
| RSE-T3-11-E | 11 | 23 | |||
| RSE-T3-15-E | 15 | 30 | |||
| RSE-T3-18-E | 18.5 | 37 | |||
| RSE-T3-22-E | 22 | 45 | |||
| RSE-T3-30-E | 30 | 60 | |||
| RSE-T3-37-E | 37 | 75 | |||
| RSE-T3-45-E | 45 | 90 | |||
| RSE-T3-55-E | 55 | 110 | |||
| RSE-T3-75-E | 75 | 150 | 378* 192* 227 | 308*150 | M8 |
| RSE-T3-90-E | 90 | 180 | |||
| RSE-T3-110-E | 115 | 230 | |||
| RSE-T3-132-E | 132 | 264 | 558* 264* 260 | 458*220 | M10 |
| RSE-T3-160-E | 160 | 320 | |||
| RSE-T3-185-E | 185 | 370 | |||
| RSE-T3-200-E | 200 | 400 | |||
| RSE-T3-250-E | 250 | 500 | 604* 292* 258 | 503*247 | M10 |
| RSE-T3-280-E | 280 | 560 | |||
| RSE-T3-320-E | 320 | 640 | |||
| RSE-T3-400-E | 400 | 800 | 675* 410* 228 | 536*340 | M10 |
| RSE-T3-450-E | 450 | 900 | |||
| RSE-T3-D-E | 500 | 1000 | |||
Euismod & configurationis
| Characteres electrica | |
| Rated voltage operating | Three-tempus 380V± XV% |
| Rated operating frequency | 50Hz aut 60Hz (Quaeso ante ordinationem) |
| Multis imperii temporibus | 3 |
| Lorem motricium | Mus, cavea tres tempus inductionem motricium / asynchronous motricium |
| Satus frequency | Secundum onus, commendatur incipere et desinere non plus quam X vicibus per horam sub condicionibus normalibus, et VI vicibus sub onere gravi. |
| Satus modum | Aggerem intentione, ramp current, modus current, inching, agger currens modus, subitus saltus voltage aggerem |
| Subsisto modum | Free stop, mollis stop |
| Munus tutelae | Tutela amissio phase, tutela supercurrentis, munimentum oneris, inaequilibrium current praesidium, exustio protectio, timeo tutela satus, etc. |
| Environmental notae | |
| operating temperatus | -10℃~40℃ (40℃~ 60℃ necesse est reducere facultatem) |
| Repono temperatus | -25℃~70℃ |
| Relativum humiditas | XCV% nulla condensatione vel cadendo |
| altitudo | Infra 1000m (1000~3000m facultatem reducendi opus est) |
| Modus refrigerandi | Naturalis aeris refrigerationem |
| modum institutionem | Murus conscendit |
| Other | Non flammabiles, explosivae, corrosivae gas, nihil prolixae pulvis vel metalli pulveris |
| Signa et Certification | |
| Exsequendam signa | GB/T14048.6 |
| Certification | CCC |
| Imperium circa proprietates | |
| bypass -01, 02 | 01, 02 incipe et claudere post peractam ad contactorem bypass control. (Chart) |
| Currere output -03, 04, 05 | 03, 04, 05 sunt omnes programmabiles cursus publici, et mora temporis in codice f4. Munus output in codice FE ponetur, et cum output validum claudetur. |
| Culpa output -06, 07, 08 | 06, 07, 08 culpa programmabiles sunt Nullam outputationes, claudentur, cum culpa incidit, sive potestas aberit, et aperientur, cum in potestate est. |
| Analog output -09, 10 | 09, 10 metiri potest notitias hodiernas quae cum onere mutantur. 400% output 4 ~ 20mA calibrationis valor, formula calculi: D = 400/16(1x-4). lx est ipsa mensura pretii (mA). Praesens motor (%). |
| Immediata subsisto initus -11 | 11 et communis disiunctio motoris immediate (vel alia puncta claudendi normalia in serie connectet. |
| Mollis stop initus -12 | 12 and common disiunctio will make the motor soft stop (or free stop) |
| Satus typing -13 | 13 et communi clausura facient currendum mobilem |
| Communia -14, 15 | Communia terminal for input signal |
| RS485 -16, 17, 18 .; | RS485 communicatio terminalis, multiplex imprimis iungo molles 16 communicatio est, grounding |
| PE -19 | Fundatur terminus |
