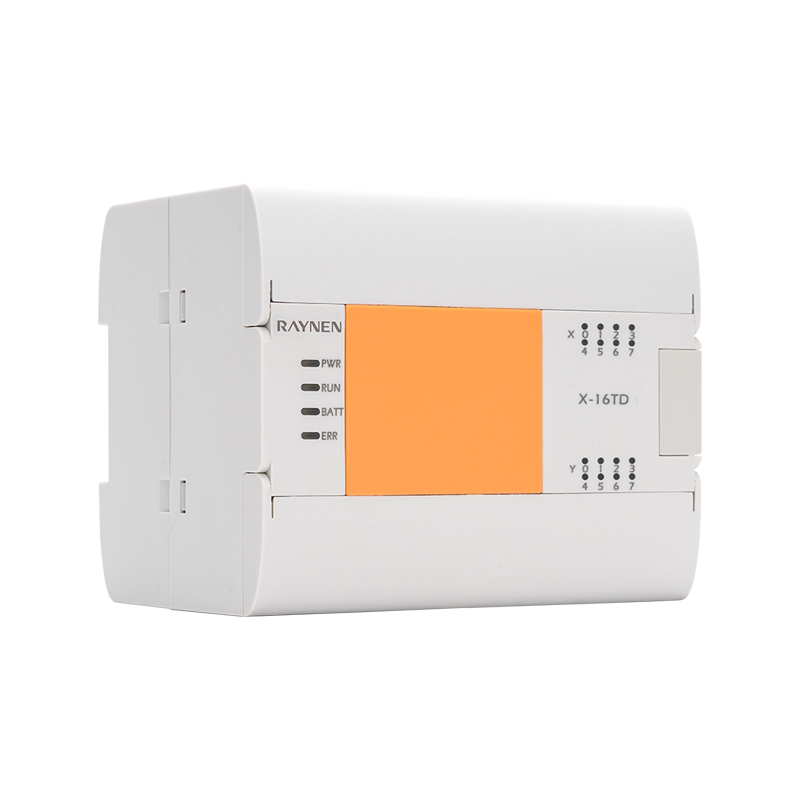

X Nullam logicam programmabilem moderatorem

•  Cum efficiens MGE, tres celeritates numerandi et alia munera

•  Horologium reale, potestas data in perpetuum servatur

• Sustine unam tabulam BD et vulgare, usque ad 7 modulorum

Interface

Initus / output

Expansion Card

BD tabula

Integrated network port RS232/485

III-modo summus celeritate contra

Expanded Max VII modules

Support I BD tabulam

Item

Power Specifications

XE-16RA

XE-24RA

XE-32RA

XE-40RA

XE-60RA

Virtus consummatio

10W

12W

12W

113W

14W

voltage opus

Minimum valorem

100VAC

Medium valorem

220VAC

Maximum valorem

240VAC

Terminus initus voltage

AC 85V~AC100V, 240V~ AC264V

Patitur in instanti potentia eu tempus

Nam potentia transeuntis outages infra 5ms, operatio permanebit

Virtus fuse

60V 2A

Impetus current

12A, 0.5ms infra/28.8V DC

DC24V data potestate

300mA infra

DC5V constructum-in potestate

800mA infra

Item

Power Specifications

XE-16RA

XE-24RA

XE-32RA

XE-40RA

XE-60RA

Input numerus

8

14

16

24

36

Summus celeritate contra

single phase 200KHz [3 pc]; AB pascha 100KHz [3 pc]

Input genus

PNP/NPN

Signum initus voltage

DC source type: DC20.4V~28.8V

Input impedimentum

X0-X5

3.3K

X6-X7

5.6K

3.3K

X10 supra

-

5.6K

De initus inductionis current

X0-X5

5mA supra

X6-X7

4mA

5mA supra

X10 supra

-

4 mA supra

Off input inductionem current

1mA supra

Input responsio tempus

4.5ms

Signum initus forma

Nulla intentione contactus initus

Sink input: NPN publicanus transistor

Fons input: PNP transistor open-collector

Solitudo initus loop

Optocoupler solitudo

Ostentationem initus actus

DUXERIT in tabula illuminat cum optocoupler depellitur

Item

Power Specifications

XE-16RA

XE-24RA

XE-32RA

XE-40RA

XE-60RA

Output numerus

8

10

16

16

24

Output type

Arida contactus

Rated voltage

220VAC

Voltage range

5~30VDC 5~250VAC

Surge current (Max)

5A 4s 10% Officium cycli

Rated current per punctum (Max)

2A

Lucerna Lond [max]

30W DC/200W AC

Responsio temporis (24V,2K onus)

10ms

on-repugnantia [connect point]

0.22 (Max cum nova)

Pulsus frequentiae [Max]

1HZ

Mechanica vita exolvuntur

100000000 (Nullum onus)

Contactus vita

(C) (Rated onus)

scutum

500m (Northmanni output)

scutum

150m (Northmanni output)

Nomen

Content

Mollis genus component

Content

X

256 punctum

Bit elementumumumumum

X0~X377

Y

256 punctum

Bit elementumumumumum

Y0~Y377

M

7680 punctum

Bit elementumumumumum

M0~M7679

SM

512 punctum

Bit elementumumumumum

SM8000~SM8511

S

4096 punctum

Bit elementumumumumum

S0~S4095

V

8 punctum

Verbum elementum

V0~V7

Z

8 punctum

Verbum elementum

Z0~Z7

T

512 punctum

Verbum elementum

T0~T511

C

200 punctum

16 frenum verbum elementum

C0~C199

C(32 bit)

56 punctum

32-bit verbum elementum

C200~C255

D

(VIII) punctum

Verbum elementum

D0~D7999

SD

512 punctum

Verbum elementum

SD8000~SD8511

R

32768 punctum

Verbum elementum

R0~R32767

Initus adjicias

8 punctum

I00** I07*

Timer interpellare

3 punctum

I6***I8**

Contra interrumpere

6 punctum

I010~I060

Dominus imperium cum nidificatione

8 punctum

N0~N7

Indicium P

4096 punctum

P0~P4095

Constantinus K

16-bit range: -32768~ 32767

32 frenum sonuit

-2147483648~ 2147483647

Constantinus H

16-bit range: 0~FFFF

32 frenum sonuite: 0~FFFFFFFF

Verus numerus (E)

-3.40×10-38~ -1.17×10-38  , 1.17x10-38~3.40×1038

Mores filum

Character dimidiati anguli ab " " , cum maximo characterum 32

Input

Distributio

Unum tempus unius contra

AB Phase counter

AB Phase counter

C235

C236

C237

C238

C239

C240

C243

C244

C246

C247

C248

C249

C251

C252

C253

C254

X0

U/D

U/D

U

U

A

A

X1

U/D

R

D

D

B

B

X2

U/D

U/D

U

R

R

A

X3

U/D

R

D

S

B

X4

U/D

S

U

A

X5

U/D

D

B
