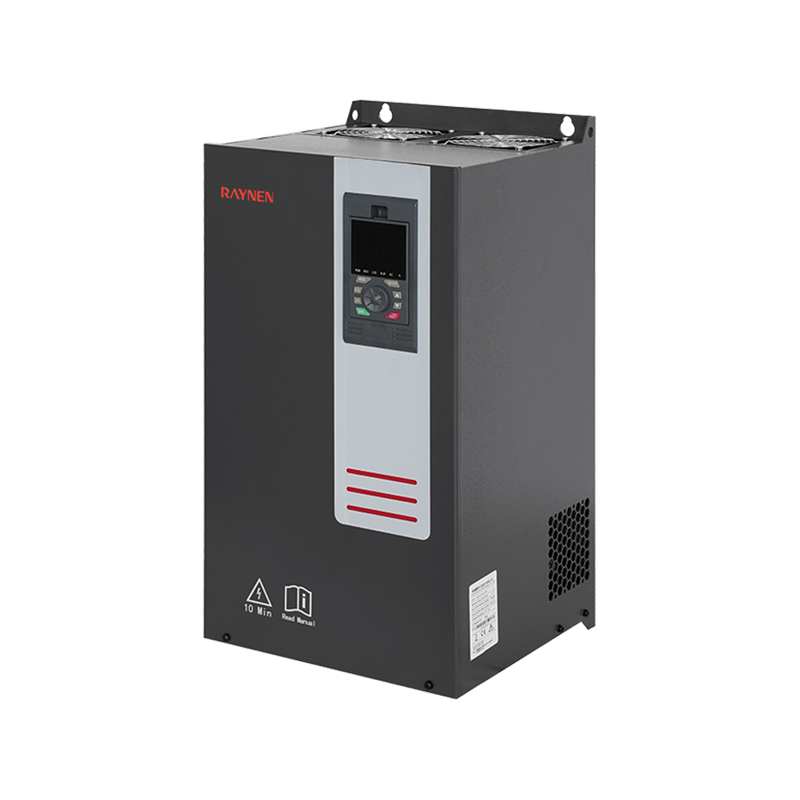

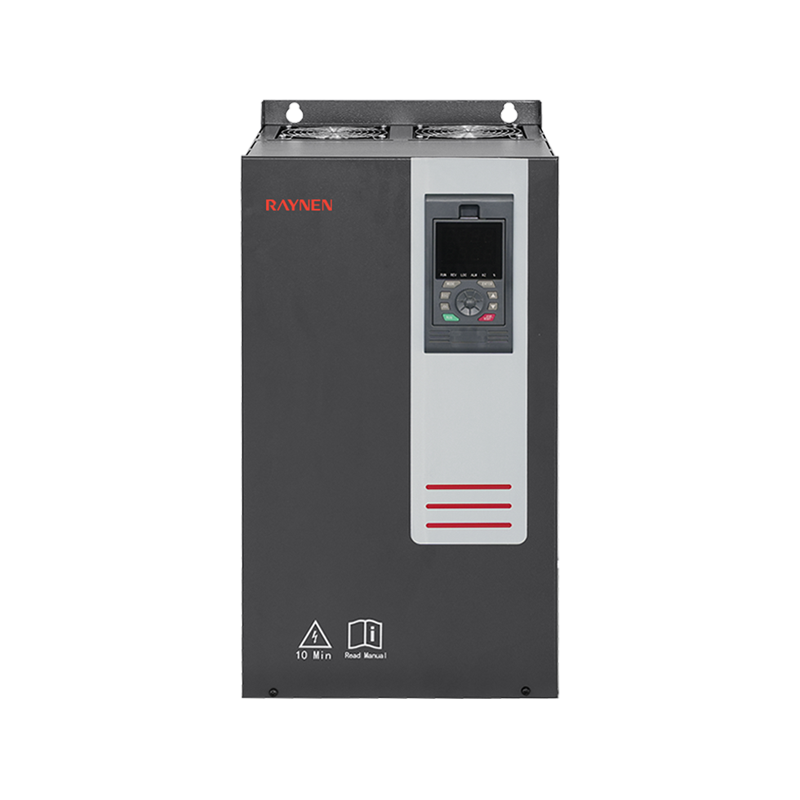

Product Summary
| Parametric | ||
 | Model | RVE32-T3-75G/90P ~ RVE32-T3-110G/132P |
| Voltage | 380V | |
| P aestimavit (kW) | 75/90/110/132 | |
| Ratum initus current (A) | 160/190/225/265 | |
| Rated output current (A) | 150/180/215/260 | |
| Dimensiones (mm) | 600*310*310 | |
| Installation size (mm) | 583*240 | |

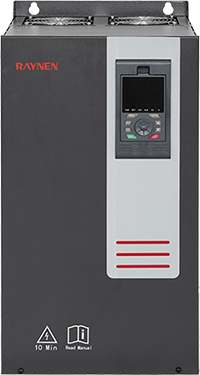

Parameter Optiones
Singula
 | Fan ● Dual aëris ductus design ● Refrigerium ● Puluere probationis ● Nos reductio |
 | Virtus tabula ● Praecipua tutelae dolorem ● Acidum et alcali resistentia ● Canens resistentia |
 | Imperium tabula ● Minimum frequentia ● Maximum Aureum ● Automatica ordinatio voltage |
 | LCD panel sit libitum Remvable operatio panel operatio commodiorem facit |
 | Add epoxy partitiones ● 37KW ad 160KW: IP40 |
 | Lorem operis probatio plene cum onus |
 | Seneca ad caliditas LX gradus ad XLVIII horas |

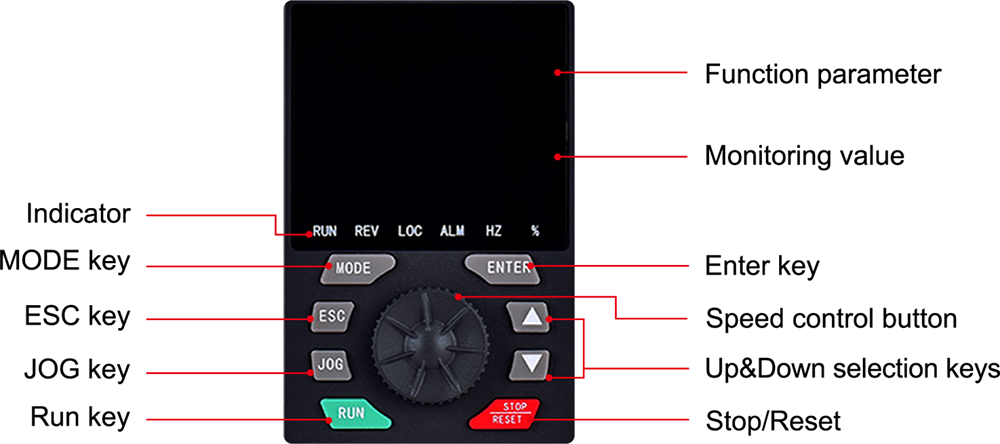

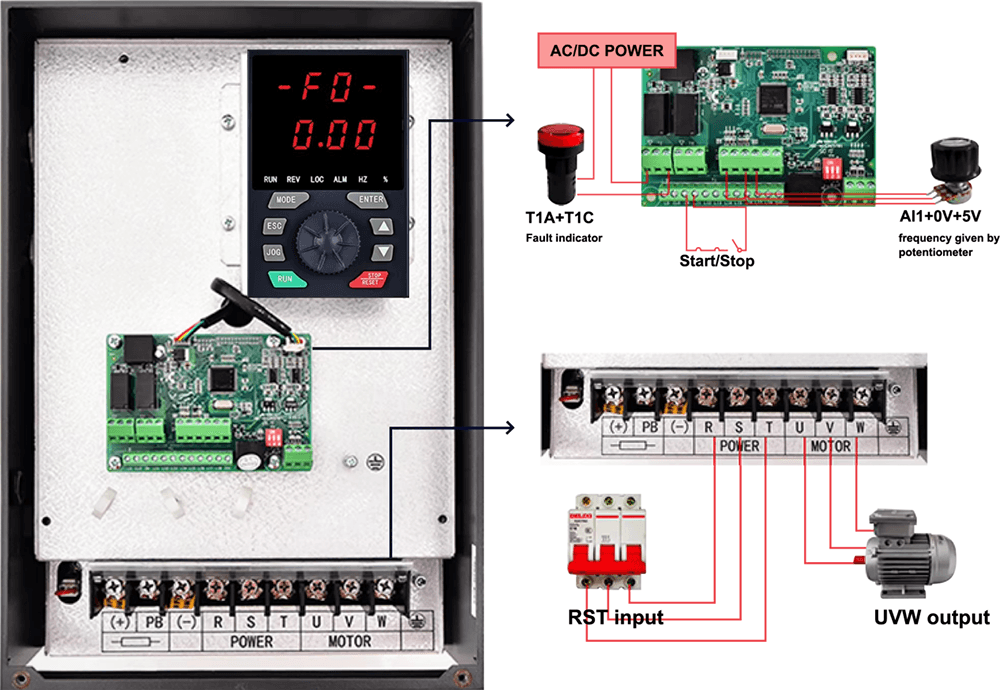

Operans Keypad mandatum
Exemplar Nomenclature
Electio mensam Tres-phase T3 type（Iron Testa）
| Inverter Model | G-genus apparatus (grave) | P-genus apparatus (lucis onus) | Dimensiones (mm) | Installation size (mm) | ||||||||
| I in（A） | Ego de (A) | P aestimavit (kW) | I in（A） | Ego de (A) | P aestimavit (kW) | H | W | D | H1 | W1 | Apertura | |
| RVE32-T3-18G/22P | 47 | 38 | 18.5 | 56 | 45 | 22 | 327 | 168 | 185.6 | 313 | 120 | Φ9 |
| RVE32-T3-22G/30P | 56 | 45 | 22 | 70 | 60 | 30 | 335 | 200 | 195 | 321 | 140 | Φ9 |
| RVE32-T3-30G/37P | 70 | 60 | 30 | 80 | 75 | 37 | 410 | 260 | 214 | 396 | 180 | Φ9 |
| RVE32-T3-37G/45P | 80 | 75 | 37 | 94 | 92 | 45 | ||||||
| RVE32-T3-45G/55P | 94 | 92 | 45 | 128 | 115 | 55 | 520 | 288 | 236 | 500 | 200 | Φ11 |
| RVE32-T3-55G/75P | 128 | 115 | 55 | 160 | 150 | 75 | 560 | 305 | 300 | 543 | 200 | Φ11 |
| RVE32-T3-75G/90P | 160 | 150 | 75 | 190 | 180 | 90 | 600 | 310 | 310 | 583 | 240 | Φ11 |
| RVE32-T3-90G/110P | 190 | 180 | 90 | 225 | 215 | 110 | ||||||
| RVE32-T3-110G/132P | 225 | 215 | 110 | 265 | 260 | 132 | ||||||
| RVE32-T3-132G/160P | 265 | 260 | 132 | 310 | 305 | 160 | 720 | 355 | 345 | 698 | 240 | Φ13 |
| RVE32-T3-160G/185P | 310 | 305 | 160 | 355 | 350 | 185 | ||||||
| RVE32-T3-185G/200P | 355 | 350 | 185 | 385 | 380 | 200 | ||||||
| RVE32-T3-200G/220P | 385 | 380 | 200 | 430 | 425 | 220 | 920 | 480 | 390 | 898 | 320 | Φ13 |
| RVE32-T3-220G/250P | 430 | 425 | 220 | 485 | 480 | 250 | ||||||
| RVE32-T3-250G/280P | 485 | 480 | 250 | 545 | 530 | 280 | 1100 | 480 | 405 | 1078 | 320 | Φ13 |
| RVE32-T3-280G/315P | 545 | 530 | 280 | 610 | 600 | 315 | ||||||
| RVE32-T3-315G/355P | 610 | 600 | 315 | 665 | 650 | 355 | ||||||
| RVE32-T3-355G | 665 | 650 | 355 | - | - | - | 1100 | 650 | 465 | 1060 | 350 | Φ17 |
| RVE32-T3-400G | 785 | 725 | 400 | - | - | - | ||||||
| RVE32-T3-500G | 890 | 860 | 500 | - | - | - | ||||||
| RVE32-T3-560G | 950 | 950 | 560 | - | - | - | 2200 | 1100 | 800 | 943 | 665 | Φ16 |
| RVE32-T3-630G | 1100 | 1100 | 630 | - | - | - | ||||||
| RVE32-T3-710G | 1280 | 1280 | 710 | - | - | - | 2200 | 1400 | 800 | 1100 | 665 | Φ16 |
| RVE32-T3-800G | 1380 | 1380 | 800 | - | - | - | ||||||
Notae: Pro 380V VFD, producta 37KW et infra signa instructa sunt in unitis fregit-constructis, 45KW-185KW instrui possunt ad constructum-in fregit unitatem, 200-800kW instrui possunt cum unitas fregit externa.
Euismod & configurationis
| Basic application functiones | |
| Humilis-frequency Aureus boost | In intentione boost et torque boost, humilis frequentia torques V/F potestate et velocitate vectoris sensoriis imperium augeri potest per circiter 0.1%~30.0% |
| V/F curva | Genus linearis, multi-punctum genus |
| Acceleratio / retardatio curva | Linearibus vel S informibus accelerationis et retardationis: tres partes accelerationis et temporis retardationis: acceleratio et retardatio temporis range: 0-3200s |
| Automatic ordinatio intentionis (AVR) | Cum mutationes intentionis emissae sunt, statim potest in intentione intentionis servare constantem |
| Inaedificata PID | Ratio control-loop clausa, quae processus imperium facile cognosci potest |
| DC braking | DC braking range: 0.0Hz-maxima frequentia; braking time: 0.0s-20.0s; braking actio current valorem: 0% -100% |
| Jog imperium | Motor statim incepit ac substitit; jog frequency setting range: 0.0-20.0Hz; QUATIO subsisto modus: retardationem / liberum / DC braking |
| Frequency circumsiliens | Tres puncta frequentia circumsilientes et iugis frequentiae circumsilientes respondentes statui possunt ad impediendum ne invertor currens in hac cohorte frequentia |
| Multi-celeritate | Usque ad 15 constitui potest per 4 logicas initus portus = Operating frequentiam |
| Input qu& | Utere operatione algebraica proventu 2 analogorum inputibus sicut occasus frequentiae, crebrae occasu flexibilius |
| Commutatione II motricium occidere parametri | Duae ambitus motoris parametri apponi possunt et libere switchari ut motori currenti acti |
| Inverter praesidium | Input/output periodus damnum praesidium, underload deprehensio, super torque praesidium, undervoltage protection, overvoltage protection, overcurrent protection, overheating protection, phase-ad phase short circuit protection |
| Motricium praesidium | Motricium tutelae scelerisque, motor modus current, motor oneris, motor brevis circuitio |
| Characteres electrici | |
| Input voltage | Tres-phasis AC, 380-480V, 50/60Hz vel unius phase AC, 200-240V, 50/60Hz. |
| Output voltage | 0-100% initus intentionis, 0.5Hz-400Hz |
| Imperium modus | Constans torque V/F, onus quadraticum V/F, vector sine sensu, modus energiae salutaris |
| Commutatione frequency | 1.5kHz-12kHz Automatic permutatio frequentiae temperatio functionis adhiberi potest: cum temperatus oritur, mutandi frequentia automatice minuitur Cum temperatura ad normalem redit, permutatio frequentiae ad valorem initialem redit |
| Plus-current facultatem | 150% aestimavit output current 60s, 200% aestimavit output current 2s |
| Imperium signum | ||
| Frequentia occasum signo | Operatio panel Integrated | Membrana switch (button), nodi velocitatis (potentiometer) |
| Signum externum | UP/DOWN setting, analog input, multi-celeritate, tabula externa, Vide communicationis | |
| Satus & Nolite imperium signum | Operatio panel Integrated | CURRE, STOP Bullae |
| Signum externum | Logica input terminalis, tabella externa, vide communicationis | |
| Imperium circa proprietates | ||
| Internum imperium praesto copia | 10V 24V | 10VDC±5%, maxima vena 10mA, pro relatio potentiometer 24VDC±5%, maxima vena 100mA, ad logicam initus portum |
| Analog Input | AI1 | Voltage analog input: 0-5VDC, seu 0-10VDC, impeditio 30k Current analog input: 0/4-20mADC, Impedimentum est 250Ω Resolutio: 10-bit A/D conversionem Factory default occasus: 0-5VDC voltage input |
| AI2 | Voltage analog input: 0-10VDC, vel PTC specillum initus Resolutio: 10-bit A/D conversionem | |
| Logica Input | LI1-LI8 | 0-24VDC potentia copia Logica positiva (fons) et logica negativa (submersa) sunt ad libitum, et officina default est logica negativa Deinceps, reverse, currunt, culpa reset, multi-celeritate et aliae 69 functiones sunt ad libitum 220V 0.4kW-2.2kW et 380V 0.4kW-1.5kW producta tantum 6 canales habent: LI1-LI6 |
| AI1, AI2 Validum coactus initus | In inverters infra 11kW (inclusive), AI1 et AI2 ut logicae inputationes erigi possunt. F309 et F310 inputationes validae coguntur, earumque configurationes functiones semper valida sunt in potestate. | |
| Analog Output | AO1、 AO2 | Voltage analog output: 0-10VDC, impedimentum minimum onus est 470Ω Current analogon output: 0/4-20mA, maximum impedimentum onus est 700Ω Resolutio: 8 frena Output frequency, output current, celeritas occasus, Vide notitia output et alia munera ad libitum 220V 0.4kW-2.2kW et 380V 0.4kW-1.5kW producta tantum 1 output analogum habent, nempe AO1 |
| Logica Output | LO、CLO | Apertus collector, maximus moneta 100mA, maxima intentione 30VDC Logica output seu pulsus output ad libitum, officina default occasus logica est output Output frequency, output current, celeritas occasus et alia output functiones ad libitum |
| Nullam output | T1A、T1B、T1C T2A、T2B、T2C | T1A normaliter aperta, T1B normaliter clausa, punctum commune T1C T2A normaliter aperta, T2B normaliter clausa, punctum commune T2C Contactus capacitatis: 5A@250VAC, 5A@30VDC Culpa, terror, frequentia adventus et alia munera libitum sunt T1A defaltis culpae, T2A defaltis ad operationem 220V 0.4kW-2.2kW et 380V 0.4kW-1.5kW producta tantum 1 nullam output habent, TA TB TC i.e. |
| Vide Communication | MODBUS-RTU, 2-filum RS-485, interfaciei terminalis | |
| Characteres electrici | |
| AC Coegi tutelam | Input phase damnum praesidium, Output Phase damnum praesidium, Underload deprehensio, Plus-torque praesidium, Undervoltage praesidium, Overvoltage praesidium, Overcurrent praesidium, Overheating praesidium, Phase brevis circuitus praesidium |
| Motricium praesidium | Motor tutela scelerisque, motor limitans current, motor cultro, motor brevis circuit |
| Characteres electrici | |||
| Praesidium campester | IP20 | Ambiens humiditas | XCV% nulla condensatio vel aqua cumulus |
| Operationis / at caliditas | -10~40°C/-20~60°C | altitudo | Infra 1000m |
| Modus refrigerandi | Coactus aeris refrigerationem | Installation locus | Umbraticis |
