Specifications
 | Parametric | |

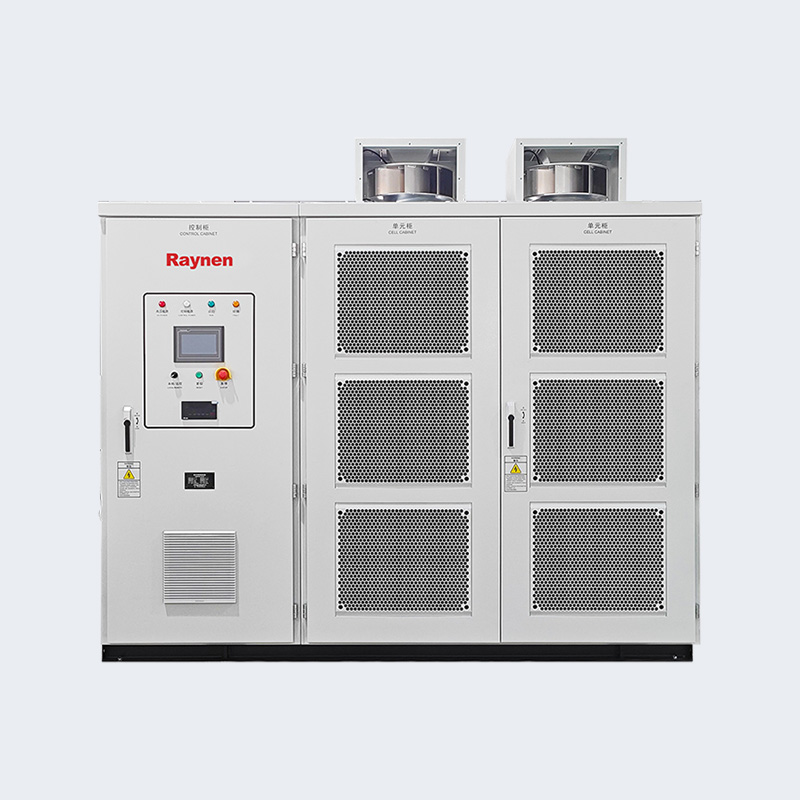

| Model | RVE1000-6-3150 ~ RVE1000-6-5000 | |
| Voltage | 6kV | |
| potentia VFD (kW) | 3150/3550/4000/4500/5000 | |
| Output current (A) | 385/433/481/558/600 | |
| Capacitas (kVA) | 4000/4500/5000/5800/6300 | |
| Magnitudo (mm) | 7434*1600*2916 | |
Technical Specifications
| Input Power | |
| Input linea intentione | 3.0~ 35kV(-10%~ 10%) |
| Input voltage fluctuatio | -35%~ 15% rated voltage |
| Input voltage frequency | 50/60Hz±5% |
| Potentia elementum potenti | Cum onus 20% excedit, plus quam 0.95 pervenire potest |
| Imperium imperium | 3ph systematis filum quattuor 380V, V~ 50kVA (secundum capacitatem VFD) |
| Output Power | |
| Output linea voltage | 3.0~11kV |
| Output frequency | 0~120Hz |
| Output frequency summa | ±5% |
| Output efficientiam | ≥96% |
| Output frequency resolutio | 0.01Hz |
| Munus regere | |
| Celeritas range | 0 ~ 300H（Motor related) |
| ONERO | CXX%, 60s potest secundum user requisita designari) |
| Imperium modum | VF imperium/GVC imperium/Torque imperium/Vector imperium |
| imperium praecisione | ±0.5% |
| Aureus habet onus | Aureus quadratus onus, assidue torques onus |
| Acc/ Dec time | 0 ~ 3200s (Adjust secundum onus habet) |
| Munus principalis protegat | Overvoltatio, supercurrente, circuitu brevis, exustio, fibra optica etc |
| Input & facultates output | |
| Digital input | 16 vias, ad 32 vias dilatabiles fieri possunt |
| Digital output | 12 modis, 28 modis potest dilatari |
| Analog input | 4 modi (0~10V/4~20mA) |
| Analog output | 6 modi (0~10V/4~20mA) |
| Communicationis | Standard: Modbus, libitum: Profibus-DP/Profinet, etc. |
| Ostendere | |
| Propono screen | Tactus velamentum sustinet operationem interface Sinica et Anglica |
| Translator characteres | |
| Temperatus praesidium | 130℃ |
| Nulla gradu | H |
| Environmental conditionibus | |
| Gradus protegat | IP30 |
| Modus refrigerandi | Coactus aeris refrigerationem |
| Tutela modum | Prona et posteriora VFD sustentationem |
| operating temperatus | -10- 40℃, 40~50℃ derata operatio |
| Repono temperatus | -20- 70℃ |
| Umor | -95%, No condensation |
| Vibratio | Infra 0.9g |
| Locus usus | Nulla corrosio, gas explosivum, pulvis domesticorum |
| altitudo | ≤1000m, 1000~2000m Derate adhibitum, derate per 1% pro qualibet 100m altitudine. Pre consule quaeso si altitudo 3000m est altior. |
Ratio Function
Product Structure
Exemplar Nomenclature
Medium intentione 6kV Coegi Specifications et Dimensiones
| Model | VFD potentia ( kW ) | capacitas ( kVA ) | Output Current ( A ) | VFD Location ( D*D H mm ) | Pondus (T ) |
| RVE1000-6-280 | 280 | 350 | 34 | 2700*1325*2542 | 2.1 |
| RVE1000-6-315 | 315 | 400 | 38 | 2700*1325*2542 | 2.1 |
| RVE1000-6-355 | 355 | 450 | 43 | 2700*1325*2542 | 2.2 |
| RVE1000-6-400 | 400 | 500 | 48 | 2700*1325*2542 | 2.3 |
| RVE1000-6-450 | 450 | 560 | 54 | 2700*1325*2542 | 2.4 |
| RVE1000-6-500 | 500 | 630 | 61 | 2700*1325*2542 | 2.5 |
| RVE1000-6-560 | 560 | 700 | 67 | 2700*1325*2542 | 2.6 |
| RVE1000-6-630 | 630 | 800 | 77 | 2700*1325*2542 | 2.8 |
| RVE1000-6-710 | 710 | 900 | 87 | 2700*1325*2542 | 3.1 |
| RVE1000-6-800 | 800 | 1000 | 96 | 2700*1325*2542 | 3.3 |
| RVE1000-6-900 | 900 | 1120 | 108 | 2700*1325*2542 | 3.4 |
| RVE1000-6-1000 | 1000 | 1250 | 120 | 2700*1325*2542 | 3.5 |
| RVE1000-6-1120 | 1120 | 1400 | 135 | 2700*1325*2542 | 3.7 |
| RVE1000-6-1250 | 1250 | 1600 | 154 | 2700*1325*2542 | 3.8 |
| RVE1000-6-1400 | 1400 | 1800 | 173 | 2700*1325*2542 | 3.9 |
| RVE1000-6-1500 | 1500 | 1900 | 183 | 3000* 1500*2542 | 4.4 |
| RVE1000-6-1600 | 1600 | 2000 | 192 | 3000* 1500*2542 | 4.6 |
| RVE1000-6-1800 | 1800 | 2250 | 217 | 3500*160*2731 | 6.7 |
| RVE1000-6-2000 | 2000 | 2500 | 241 | 3500*160*2731 | 7.0 |
| RVE1000-6-2240 | 2240 | 2800 | 269 | 4405* 1500*2895 | 9 |
| RVE1000-6-2500 | 2500 | 3150 | 303 | 4405* 1500*2895 | 9 |
| RVE1000-6-2600 | 2600 | 3300 | 318 | 4405* 1500*2895 | 9.8 |
| RVE1000-6-2800 | 2800 | 3500 | 337 | 4705* 1600* 2895 | 10.2 |
| RVE1000-6-3150 | 3150 | 4000 | 385 | 7434*1600*2916 | 12.9 |
| RVE1000-6-3550 | 3550 | 4500 | 433 | 7434*1600*2916 | 14 |
| RVE1000-6-4000 | 4000 | 5000 | 481 | 7434*1600*2916 | 14.3 |
| RVE1000-6-4500 | 4500 | 5800 | 558 | 7434*1600*2916 | 15.5 |
| RVE1000-6-5000 | 5000 | 6300 | 600 | 7434*1600*2916 | 16.7 |
| RVE1000-6-5600 | 5600 | 7000 | 673 | 9270* 1980*3438 | 20.7 |
| RVE1000-6-6300 | 6300 | 8000 | 770 | 9270* 1980*3438 | 20.7 |
| RVE1000-6-7100 | 7100 | 9000 | 870 | 9270* 1980*3438 | 22.2 |
| RVE1000-6-8000 | 8000 | 10000 | 962 | 9270* 1980*3438 | 22.2 |
Medium intentionis 10kV Coegi Specifications et Dimensiones
| Model | VFD potentia ( kW ) | capacitas ( kVA ) | Output Current ( A ) | VFD Location ( D*D H mm ) | Pondus (T ) |
| RVE1000-10-280 | 280 | 350 | 20 | 2700*1325*2542 | 2.4 |
| RVE1000-10-315 | 315 | 400 | 23 | 2700*1325*2542 | 2.5 |
| RVE1000-10-355 | 355 | 450 | 26 | 2700*1325*2542 | 2.5 |
| RVE1000-10-400 | 400 | 500 | 29 | 2700*1325*2542 | 2.6 |
| RVE1000-10-450 | 450 | 560 | 32 | 2700*1325*2542 | 2.6 |
| RVE1000-10-500 | 500 | 630 | 36 | 2700*1325*2542 | 2.7 |
| RVE1000-10-560 | 560 | 700 | 40 | 2700*1325*2500 | 2.8 |
| RVE1000-10-630 | 630 | 800 | 46 | 2700*1325*2500 | 2.9 |
| RVE1000-10-710 | 710 | 900 | 52 | 2700*1325*2500 | 2.9 |
| RVE1000-10-800 | 800 | 1000 | 58 | 2700*1325*2500 | 3.1 |
| RVE1000-10-900 | 900 | 1120 | 65 | 2700*1325*2500 | 3.3 |
| RVE1000-10-1000 | 1000 | 1250 | 72 | 2700*1325*2500 | 3.5 |
| RVE1000-10-1120 | 1120 | 1400 | 81 | 3000* 1500*2542 | 3.7 |
| RVE1000-10-1250 | 1250 | 1600 | 92 | 3000* 1500*2542 | 3.9 |
| RVE1000-10-1400 | 1400 | 1800 | 104 | 3000* 1500*2542 | 4.1 |
| RVE1000-10-1500 | 1500 | 1900 | 110 | 3000* 1500*2542 | 4.3 |
| RVE1000-10-1600 | 1600 | 2000 | 115 | 3000* 1500*2542 | 4.4 |
| RVE1000-10-1800 | 1800 | 2250 | 130 | 3000* 1500*2542 | 4.7 |
| RVE1000-10-2000 | 2000 | 2500 | 144 | 3000* 1500*2542 | 4.9 |
| RVE1000-10-2240 | 2240 | 2800 | 162 | 3000* 1500*2542 | 5.1 |
| RVE1000-10-250 | 2500 | 3150 | 182 | 3000* 1500*2542 | 5.4 |
| RVE1000-10-2650 | 2650 | 3300 | 191 | 3000* 1500*2542 | 5.8 |
| RVE1000-10-2800 | 2800 | 3500 | 202 | 4500*160*2731 | 8.5 |
| RVE1000-10-3150 | 3150 | 4000 | 231 | 4500*160*2731 | 9.3 |
| RVE1000-10-3400 | 3400 | 4250 | 245 | 4500*160*2731 | 9.8 |
| RVE1000-10-3600 | 3600 | 4500 | 260 | 4500*160*2731 | 10.2 |
| RVE1000-10-4000 | 4000 | 5000 | 289 | 7200* 1600* 2895 | 14.5 |
| RVE1000-10-4500 | 4500 | 5800 | 335 | 7200* 1600* 2895 | 15.2 |
| RVE1000-10-5000 | 5000 | 6300 | 364 | 11034*1700*2895 | 16.7 |
