Product Summary
● Standard kyn28 scrinium, stricte dispositum Secundum signa tutelae
● Fiber opticus felis
● Pt modus acquisitionis, stabilior quam modus electronicus
● Parere cum alta intentione electrica specificationem internationalem
● Pars magna intentione et pars humilis intentione prorsus separatae sunt tutae et certae
● Scalable multum interface
Specifications
 | Parametric | |
| Exemplar | RSE1000-6-5000 | |
| Ratum Voltage | 6kV | |
| P aestimavit (kW) | 5000 | |
| Ratum est vena (A) | 600 | |
| Magnitudine (W*H*D mm) | Vestibulum | |
 | Modulare consilium ad institutionem facilem et conservationem. Nulla vis promovetur |
| | Facile est instituere, debug et uti: RVS motoris initium est imperium et tutelam systematis. Dat explorationem electrica totius systematis utens humili intentione antequam ad alta intentione discurrit. |
| | 7-inch touchscreen LCD panel adhibentur ut programmandi et moduli commensurationem commodiorem reddant. Vitium et real-time vigilantia magis intuitiva sunt quam laboris efficientia emendare |
| | progressio encryption occasus |

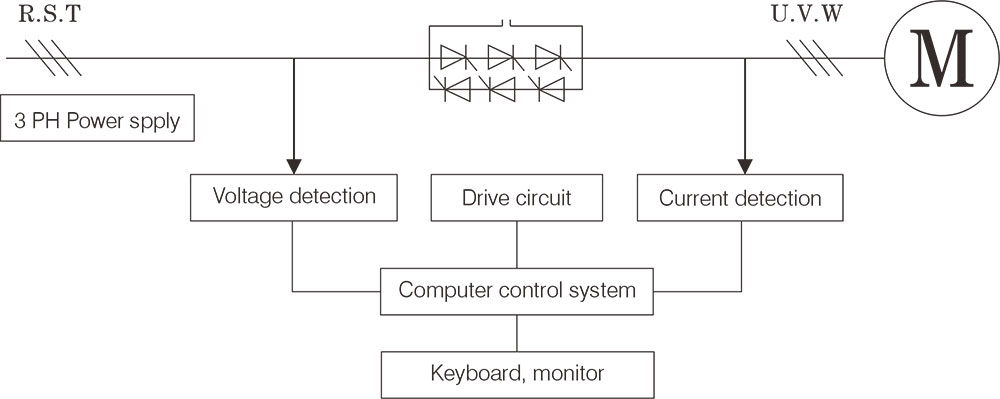

Principium Diagram working
Exemplar Nomenclature
6kV Rated Voltage Medium intentione Mollis Coepi Electio Mensa
| Exemplar | Rate voltage ( kV ) | Aestimavit potestatem ( kW ) | Ratum current ( A ) | Dimensiones (W*H*D) mm | |
| (-G) Genus genenale | (-E) Integration Type | ||||
| RSE1000-6-420 | 6 | 420 | 50 | 1000*2300*150 | 1000*2300*150 |
| RSE1000-6-630 | 6 | 630 | 75 | 1000*2300*150 | 1000*2300*150 |
| RRSE1000-6-800 | 6 | 800 | 96 | 1000*2300*150 | 1000*2300*150 |
| RSE1000-6-1250 | 6 | 1250 | 150 | 1000*2300*150 | 1000*2300*150 |
| RSE1000-6-1600 | 6 | 1600 | 200 | 1000*2300*150 | - |
| RSE1000-6-2500 | 6 | 2500 | 300 | 1000*2300*150 | - |
| RSE1000-6-3300 | 6 | 3300 | 400 | 1000*2300*150 | - |
| RSE1000-6-4150 | 6 | 4150 | 500 | 1000*2300*150 | - |
| RSE1000-6-5000 | 6 | 5000 | 600 | Vestibulum | - |
10kV Rated Voltage Medium intentione Soft Coepi Electio Mensa
| Exemplar | Rate voltage ( kV ) | Aestimavit potestatem ( kW ) | Ratum current ( A ) | Dimensiones (W*H*D) mm | |
| (-G) Genus genenale | (-E) Integration Type | ||||
| RSE1000-10-420 | 10 | 420 | 30 | 1000*2300*150 | 1000*2300*150 |
| RSE1000-10-630 | 10 | 630 | 45 | 1000*2300*150 | 1000*2300*150 |
| RSE1000-10-800 | 10 | 800 | 60 | 1000*2300*150 | 1000*2300*150 |
| RSE1000-10-1250 | 10 | 1250 | 90 | 1000*2300*150 | 1000*2300*150 |
| RSE1000-10-1600 | 10 | 1600 | 110 | 1000*2300*150 | 1000*2300*150 |
| RSE1000-10-1800 | 10 | 1800 | 130 | 1000*2300*150 | 1000*2300*150 |
| RSE1000-10-2250 | 10 | 2250 | 160 | 1000*2300*150 | - |
| RSE1000-10-250 | 10 | 2500 | 180 | 1000*2300*150 | - |
| RSE1000-10-2800 | 10 | 2800 | 200 | 1000*2300*150 | - |
| RSE1000-10-3500 | 10 | 3500 | 250 | 1000*2300*150 | - |
| RSE1000-10-4000 | 10 | 4000 | 280 | 1000*2300*150 | - |
| RSE1000-10-4500 | 10 | 4500 | 320 | 1000*2300*150 | - |
| RSE1000-10-5500 | 10 | 5500 | 400 | 1000*2300*150 | - |
| RSE1000-10-6500 | 10 | 6000 | 430 | 1000*2300*150 | - |
| RSE1000-10-7000 | 10 | 7000 | 500 | 1000*2300*150 | - |
| RSE1000-10-8500 | 10 | 8500 | 600 | Vestibulum | - |
| RSE1000-10-1000 | 10 | 10000 | 720 | Vestibulum | - |
| RSE1000-10-15000 | 10 | 15000 | 1080 | Vestibulum | - |
Data technica
| Basic parametri | |
| Genus onus | Tres tempus medium voltage sciurus cavea asynchronous motor, synchrona motor |
| frequency opus | 50HZ/60Hz±2Hz |
| tempus ordo | Liceat operari in aliqua periodo sequentia (per parametris apponi potest) |
| Bypass contactor | Contactoris cum recta incipiens facultatem |
| Imperium imperium | AC220V±15% |
| Overvoltage praesidium | DV/DT effusio |
| Satus frequency | ambiens temperatus: -20℃~ 50℃ |
| Environment conditio | 1-6 temporibus per hora |
| Humiditas relativa: 5% - 95% non-condensans | |
| Altitudo minor quam 1500m | |
| HMI | |
| Linguae | Anglicus / Chinese / Russian |
| Instrumentum ostentationem | |
| Voltmeter | Praecipua potentia copia intentione tres phase |
| Ammeter | Praecipuum circa current tres phase ostende |
| Munus tutelae | |
| Defectum tempus praesidium | Per startup vel operationem, disiungo aliquam partem principalis potentiae copia |
| Overcurrent praesidium | super current praesidio paro: C ~ D% |
| Tempus current unbalance praesidium | 20~100% |
| ONERO praesidium | ONERO praesidium level:10A,20A,30A |
| Undervoltage praesidium | Range：50~100% |
| | Actio tempore 0 ~ 10S |
| Satus timeout | Satus terminum X ~ 120S |
| Overvoltage praesidium | Cum summa potentia copia voltage est altior quam CXX% de valorem aestimavit |
| Underload praesidium | Cum principalis potentia copia voltage est infra LXX% de valorem rated |
| Grounding praesidium | Cum præcomprehensio vena major est quam statuto valore |
| Communicationis | |
| Protocol / interface | Modbus RTU |
| Network hospites | Quisque RVS communicare potest cum 32 RVSs online |
| Munus | Operationem status et programming observa |
| Data record | |
| Defectum recordum | Indicio notare culpam ultimis 1000 temporibus |
