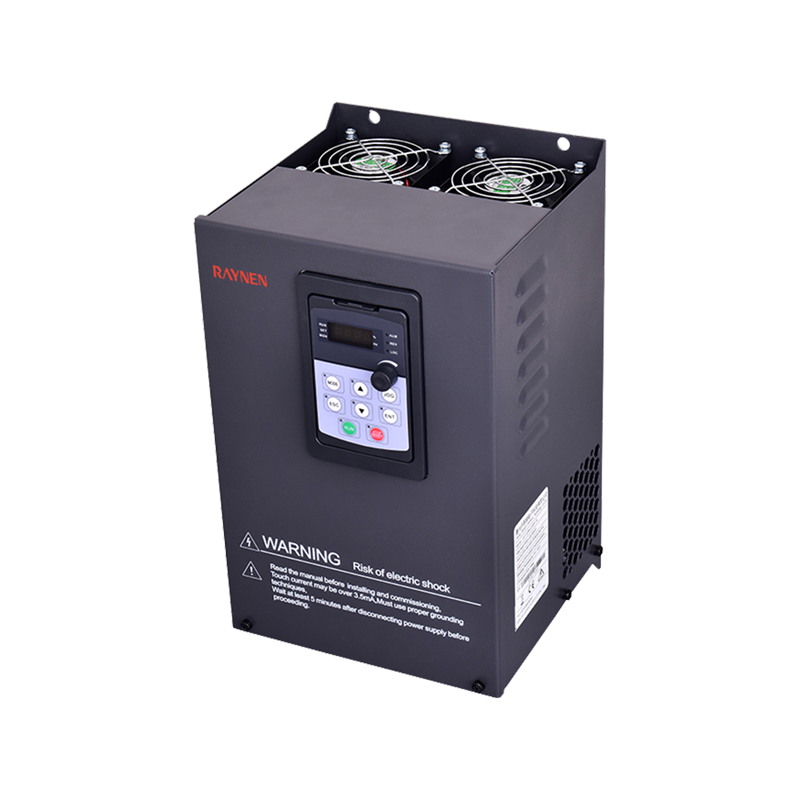

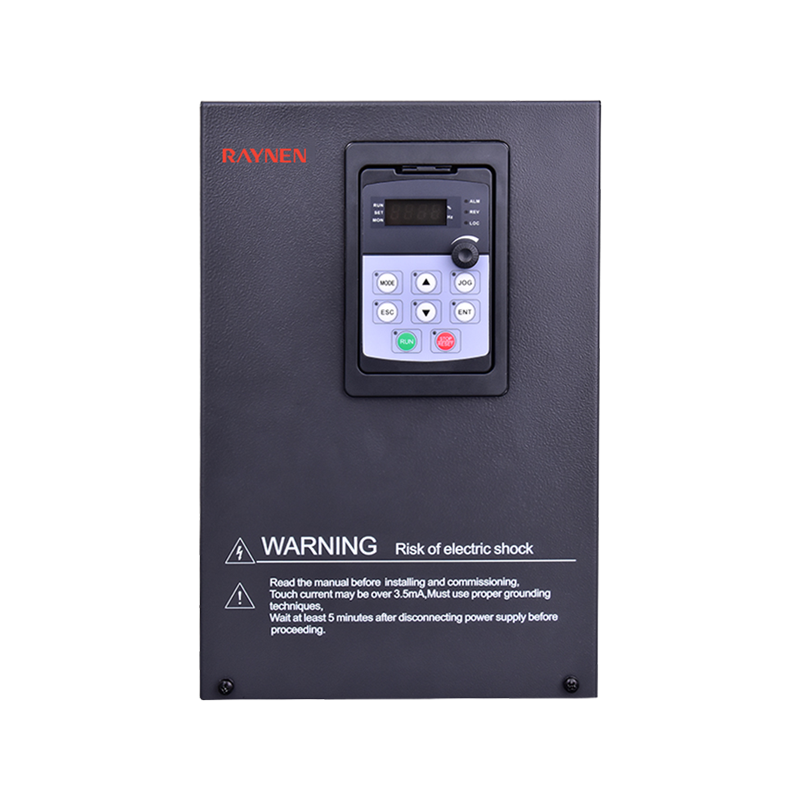

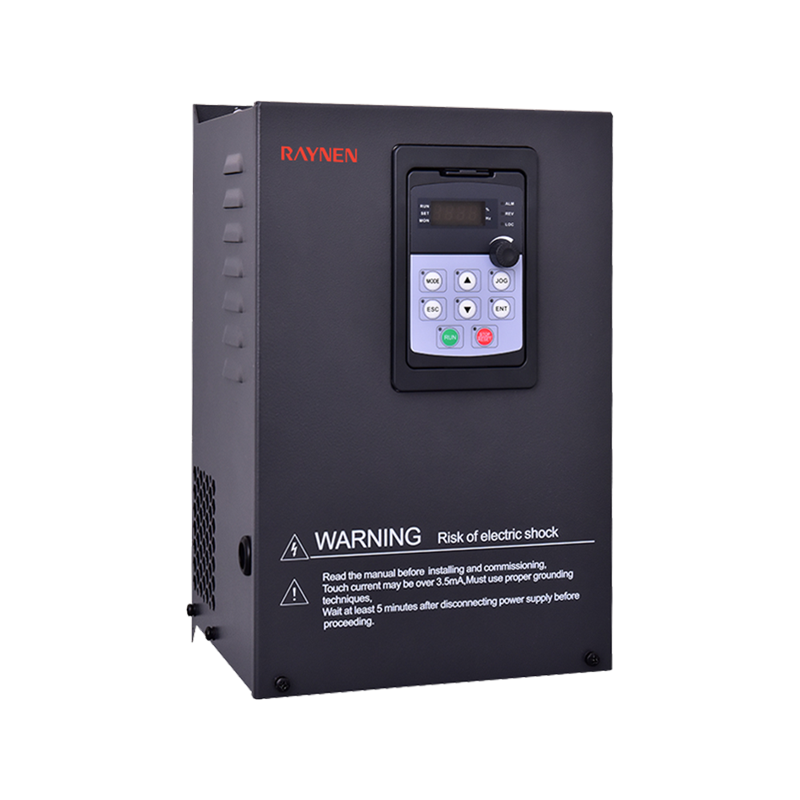

Product Summary
| Parametric | ||
| | Exemplar | RVE21-T3-15G/18P ~ RVE21-T3-18G/22P |
| Voltage | 380V | |
| Ratum potentia (kW) | 15/18.5/22 | |
| Ratum initus current (A) | 40/47/56 | |
| Rated output current (A) | 32/38/45 | |
| Dimensiones (mm) | 327* 168* 185.6 | |
| Installation size (mm) | 313* 120 | |
Integrated Panel For Easy Debugging
Exemplar Nomenclature
Selection table Single-phase S2 type
| Inverter Model | G-type machine (heavy load) | P-type machine (light load) | Dimensiones (mm) | Installation size (mm) | ||||||||
| Ratum initus current(A) | Rated output current( A ) | Aestimavit potestatem | Ratum initus current(A) | Rated output current( A ) | Aestimavit potestatem(kW) | H | W | D | H1 | W1 | Apertura | |
| RVE21-S2-0R4 | 6.3 | 2.5 | 0.4 | - | - | - | 170 | 81 | 142 | 161 | 64.5 | Φ5 |
| RVE21-S2-0R7 | 11.5 | 5 | 0.75 | - | - | - | ||||||
| RVE21-S2-1R5 | 15.7 | 7 | 1.5 | - | - | - | ||||||
| RVE21-S2-2R2 | 27 | 10 | 2.2 | - | - | - | ||||||
Selection table Three-phase T3 type
| Inverter Model | G-type machine (heavy load) | P-type machine (light load) | Dimensiones (mm) | Installation size (mm) | ||||||||
| I in ( A ) | Ego de (A) | P aestimavit (kW) | I in ( A ) | Ego de (A) | P aestimavit (kW) | H | W | D | H1 | W1 | Apertura | |
| RVE21-T3-0R4G/0R7P | 2.1 | 1.5 | 0.4 | 3.6 | 2.6 | 0.75 | 170 | 81 | 142 | 161 | 64.5 | Φ5 |
| RVE21-T3-0R7G/1R5P | 3.6 | 2.6 | 0.75 | 6.4 | 4.1 | 1.5 | ||||||
| RVE21-T3-1R5G/2R2P | 6.4 | 4.1 | 1.5 | 8.7 | 5.5 | 2.2 | ||||||
| RVE21-T3-2R2G/3P | 8.7 | 5.5 | 2.2 | 10.9 | 6.9 | 3 | 145 | 107 | 160 | 135 | 95 | Φ5 |
| RVE21-T3-3G/4P | 10.9 | 6.9 | 3 | 14 | 9.5 | 4 | ||||||
| RVE21-T3-4G/5R5P | 14 | 9.5 | 4 | 20.7 | 12.6 | 5.5 | 200 | 138 | 145 | 188 | 124 | Φ5 |
| RVE21-T3-5R5G/7R5P | 20.7 | 12.6 | 5.5 | 26.5 | 18.5 | 7.5 | ||||||
| RVE21-T3-7R5G/11P | 26.5 | 18.5 | 7.5 | 36.6 | 25 | 11 | 232 | 153 | 170 | 220 | 139 | Φ5 |
| RVE21-T3-11G/15P | 36.6 | 25 | 11 | 40 | 32 | 15 | ||||||
| RVE21-T3-15G/18P | 40 | 32 | 15 | 47 | 38 | 18.5 | 327 | 168 | 185.6 | 313 | 120 | Φ9 |
| RVE21-T3-18G/22P | 47 | 38 | 18.5 | 56 | 45 | 22 | ||||||
| RVE21-T3-22G/30P | 56 | 45 | 22 | 70 | 60 | 30 | 335 | 200 | 195 | 321 | 140 | Φ9 |
| RVE21-T3-30G/37P | 70 | 60 | 30 | 80 | 75 | 37 | 410 | 260 | 214 | 396 | 180 | Φ9 |
| RVE21-T3-37G/45P | 80 | 75 | 37 | 94 | 92 | 45 | ||||||
| RVE21-T3-45G/55P | 94 | 92 | 45 | 128 | 115 | 55 | 520 | 288 | 236 | 500 | 200 | Φ11 |
| RVE21-T3-55G/75P | 128 | 115 | 55 | 160 | 150 | 75 | 560 | 305 | 300 | 543 | 200 | Φ11 |
| RVE21T3-75G/90P | 160 | 150 | 75 | 190 | 180 | 90 | 600 | 310 | 310 | 583 | 240 | Φ11 |
| RVE21-T3-90G/110P | 190 | 180 | 90 | 225 | 215 | 110 | ||||||
| RVE21-T3-110G/132P | 225 | 215 | 110 | 265 | 260 | 132 | ||||||
| RVE21-T3-132G/160P | 265 | 260 | 132 | 310 | 305 | 160 | 720 | 355 | 345 | 698 | 240 | Φ13 |
| RVE21-T3-160G/185P | 310 | 305 | 160 | 355 | 350 | 185 | ||||||
| RVE21-T3-185G/200P | 355 | 350 | 185 | 385 | 380 | 200 | ||||||
| RVE21-T3-200G/220P | 385 | 380 | 200 | 430 | 425 | 220 | 920 | 480 | 390 | 898 | 320 | Φ13 |
| RVE21-T3-220G/250P | 430 | 425 | 220 | 485 | 480 | 250 | ||||||
| RVE21-T3-250G/280P | 485 | 480 | 250 | 545 | 530 | 280 | 1100 | 480 | 405 | 1078 | 320 | Φ13 |
| RVE21-T3-280G/315P | 545 | 530 | 280 | 610 | 600 | 315 | ||||||
| RVE21-T3-315G/355P | 610 | 600 | 315 | 665 | 650 | 355 | ||||||
| RVE21-T3-355G | 665 | 650 | 355 | - | - | - | 1100 | 650 | 465 | 1060 | 350 | Φ17 |
| RVE21-T3-400G | 785 | 725 | 400 | - | - | - | ||||||
| RVE21-T3-500G | 890 | 860 | 500 | - | - | - | ||||||
| RVE21-T3-560G | 950 | 950 | 560 | - | - | - | 2200 | 1100 | 800 | 943 | 665 | Φ16 |
| RVE21-T3-630G | 1100 | 1100 | 630 | - | - | - | ||||||
| RVE21-T3-710G | 1280 | 1280 | 710 | - | - | - | 2200 | 1400 | 800 | 1100 | 665 | Φ16 |
| RVE21-T3-800G | 1380 | 1380 | 800 | | | | ||||||
Performance & Configuration
| Basic applicationem munera | |
| Humilis-frequency Aureus boost | In intentione boost et torque boost, humilis frequentia torques V/F potestate et velocitate vectoris sensoriis imperium augeri potest per circiter 0.1%~30.0% |
| V/F curva | Genus linearis, multi-punctum genus |
| Acceleratio / retardationem curva | Linearibus vel S informibus accelerationis et retardationis: tres partes accelerationis et temporis retardationis: acceleratio et retardatio temporis range: 0-3200s |
| Automatic voltage regulation (AVR) | Cum mutationes incisiones voltagenarum, sponte se continere possunt in intentione intentionis constantis |
| Inaedificata PID | Ratio control-loop clausa, quae processus imperium facile cognosci potest |
| DC braking | DC braking range: 0.0Hz-maximum frequency; braking time: 0.0s-20.0s; braking action current value: 0%-100% |
| Jog imperium | Motor statim incepit ac substitit; jog frequency setting range: 0.0-20.0Hz; jog stop mode: deceleration/free/DC braking |
| Frequency circumsiliens | Tres puncta frequentia circumsilientes et iugis frequentiae circumsilientes respondentes statui possunt ad impediendum ne invertor currens in hac cohorte frequentia |
| Multi-celeritate | Usque ad 15 constitui potest per 4 logicas initus portus = Operating frequentiam |
| Input qu& | Utere operatione algebraica ex 2 analogis inputibus sicut occasus frequentiae, crebras occasu flexibilius |
| Commutatione II summa motricium parametri | Duae ambitus motoris parametri apponi possunt et libere switchari ut motori currenti acti |
| Inverter praesidium | Input/output periodus damnum praesidium, underload deprehensio, super torque praesidium, undervoltage protection, overvoltage protection, overcurrent protection, overheating protection, phase-ad phase short circuit protection |
| Motricium praesidium | Motricium tutelae scelerisque, motor modus current, motor oneris, motor brevis circuitio |
| Characteres electrici | |
| Input voltage | Tres-phasis AC, 380-480V, 50/60Hz vel unius phase AC, 200-240V, 50/60Hz. |
| Output voltage | 0-100% initus intentionis, 0.5Hz-400Hz |
| Imperium modus | Constans torque V/F, onus quadraticum V/F, vector sine sensu, modus energiae salutaris |
| Commutatione frequency | 1.5kHz-12kHz Automatic permutatio frequentiae temperatio functionis adhiberi potest: cum temperatus oritur, mutandi frequentia automatice minuitur Cum temperatura ad normalem redit, permutatio frequentiae ad valorem initialem redit |
| Plus-current facultatem | 150% aestimavit output current 60s, 200% aestimavit output current 2s |
| Imperium signum | ||
| Frequentia occasum signo | Operatio panel Integrated | Membrane switch (button), speed knob (potentiometer) |
| Signum externum | UP/DOWN setting, analog input, multi-celeritate, tabula externa, Vide communicationis | |
| Satus & Nolite imperium signum | Operatio panel Integrated | CURRE, STOP Bullae |
| Signum externum | Logic input terminal, external panel, serial communication | |
| Imperium circa proprietates | ||
| Internum imperium praesto copia | 10V 24V | 10VDC±5%, maxima vena 10mA, pro relatio potentiometer 24VDC±5%, maximum current 100mA, for logic input port |
| Analog Input | AI1 | Voltage analog input: 0-5VDC, or 0-10VDC, impedance is 30k Current analog input: 0/4-20mADC, Impedimentum est 250Ω Resolutio: 10-bit A/D conversionem Factory default occasus: 0-5VDC voltage input |
| AI2 | Voltage analog input: 0-10VDC, or PTC probe input Resolutio: 10-bit A/D conversionem | |
| Logica Input | LI1-LI8 | 0-24VDC potentia copia Positive logic (source) and negative logic (sink) are optional, and the factory default is negative logic Deinceps, reverse, currunt, culpa reset, multi-celeritate et aliae 69 functiones sunt ad libitum 220V 0.4kW-2.2kW and 380V 0.4kW-1.5kW products only have 6 channels: LI1-LI6 |
| AI1, AI2 Validum coactus initus | In inverters below 11kW (inclusive), AI1 and AI2 can be set as logic inputs. F309 et F310 inputationes validae coguntur, earumque configurationes functiones semper valida sunt in potestate. | |
| Analog Output | AO1、 AO2 | Voltage analog output: 0-10VDC, minimum load impedance is 470Ω Current analog output: 0/4-20mA, maximum load impedance is 700Ω Resolutio: 8 frena Output frequency, output current, speed setting, serial output data and other functions are optional 220V 0.4kW-2.2kW and 380V 0.4kW-1.5kW products have only 1 analog output, namely AO1 |
| Logica Output | LO、CLO | Open collector, maximum current 100mA, maximum voltage 30VDC Logic output or pulse output optional, factory default setting is logic output Output frequency, output current, speed setting and other output functions optional |
| Nullam output | T1A、T1B、T1C T2A、T2B、T2C | T1A normaliter aperta, T1B normaliter clausa, punctum commune T1C T2A normally open, T2B normally closed, T2C common point Contactus capacitatis: 5A@250VAC, 5A@30VDC Culpa, terror, frequentia adventus et alia munera libitum sunt T1A defaltis culpae, defaltis T2A ad operationem 220V 0.4kW-2.2kW et 380V 0.4kW-1.5kW producta tantum 1 nullam output habent, TA TB TC i.e. |
| Vide Communication | MODBUS-RTU, 2-filum RS-485, interfaciei terminalis | |
| Characteres electrici | |
| AC Coegi tutelam | Input phase damnum praesidium, Output Phase damnum praesidium, Underload deprehensio, Plus-torque praesidium, Undervoltage praesidium, Overvoltage praesidium, Overcurrent praesidium, Overheating praesidium, Phase brevis circuitus praesidium |
| Motricium praesidium | Motricium tutelae scelerisque, motor limitatio currentis, motor oneris, motor brevis circuitio |
| Characteres electrici | |||
| Praesidium campester | IP20 | Ambiens humiditas | XCV% nulla condensatio vel aqua cumulus |
| Operationis / at caliditas | -10~40°C/-20~60°C | altitudo | Infra 1000m |
| Modus refrigerandi | Coactus aeris refrigerationem | Installation locus | Umbraticis |
