Product Summary
Commodum
• 7.5kW
Maximum imperium
• 5-motorium
Initium lenis, coefficientis Aureus altior
• 6000rpm
Summus celeritas, operatio stabilis
• 23-bit
Summus praecisio absoluta optica encoder, accuratior

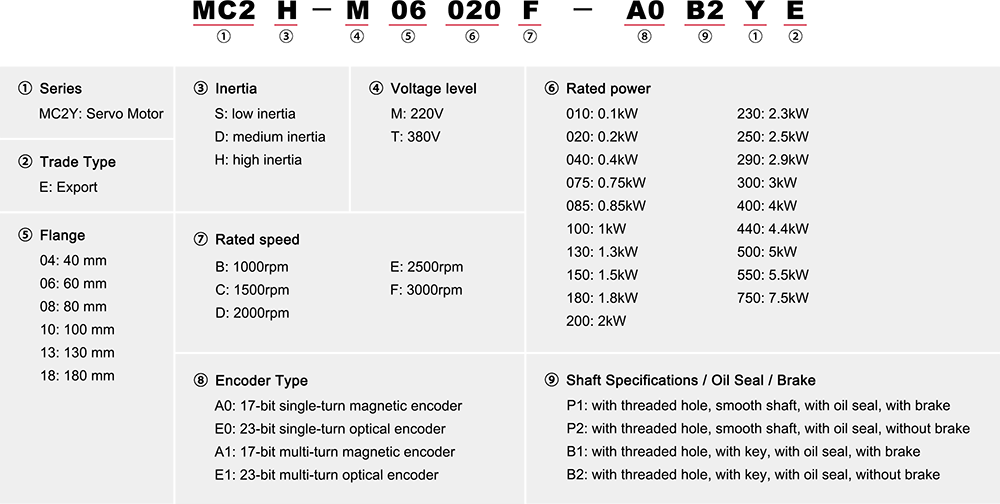

Exemplar Nomenclature
Parameter
| MC2Y Series Servo Motors - 180 Flange* | |
| Item | Motor parametri |
| Motor model | MC2D-T18750- VE |
| gradu inertiae | Medium |
| Voltage (V) | 380 |
| Flange (mm) | 180 |
| Wiring type | Aviation genus obturaculum |
| P aestimavit (kW) | 7.5 |
| Rated torque (N·m) | 47.75 |
| Instantaneus maximus torques (N·m) | 119.37 |
| Rated current (Arms) | 17.7 |
| Momentum maximum current (Arms) | 47.7 |
| Celeritas rated (rpm) | 1500 |
| Maximam celeritatem (rpm) | 2000 |
| Momentum inertiae (kg·cm2) | 119.6 (124.6) |
| T-N curva (Y-axis: torque N·m) (X-axis: celeritas rpm) | |
| LL | 256 (306) |
| LR | 113 |
| LA | 200 |
| LZ | 4-φ13.5 |
| LH | 129 |
| LC | 180 |
| LE | 3.2 |
| S | 42 |
| LB | 114.3 |
| TP | M16×32 |
| LK | 96 |
| KH | 37 |
| KW | 12 |
| W | 12 |
| T | 8 |
| LG | 17.4 |
| Sine fregit | |
| Cum fregit | |
*Pro singulis exemplaribus in aliis parametris, placere ad electionem manualem vel ad ministerium emptoris consulere.
