Product Summary
Commodum
• Celeritas
4 times apicem torque / 7000rpm cacumen celeritate /23-frenum encoder optica praecisio /30% temperatus inferior ortus
• auxilium salutis
Integrant habitationem design /IP67 tutelae gradu
• Securus utendi
Longitudo% XX breviori fuselage

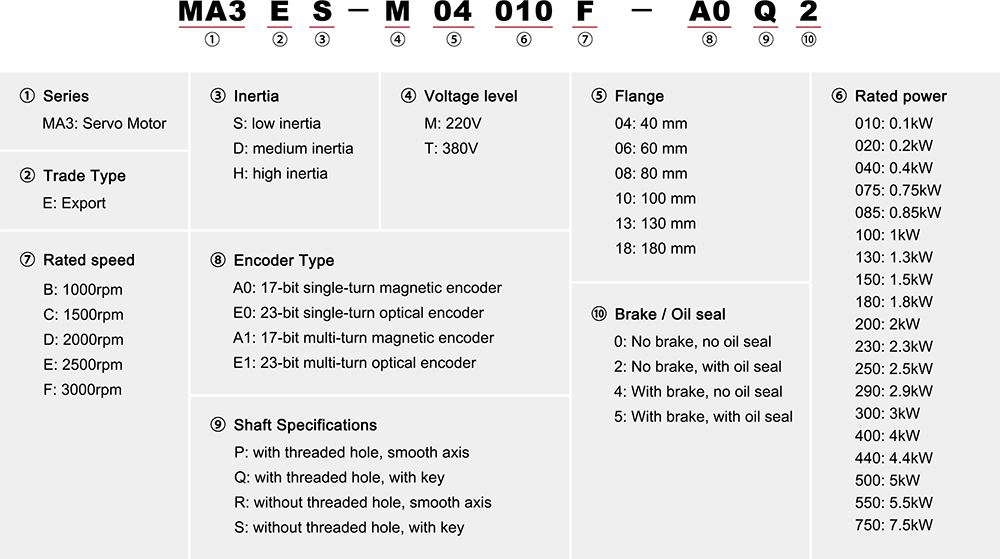

Exemplar Nomenclature
Parameter
| MA3 Series Servo Motors - 60 Flange* | |
| Item | Motor parametri |
| Motor model | MA3ED-M06040F- |
| gradu inertiae | Medium |
| Voltage (V) | 220 |
| Flange (mm) | 60 |
| Wiring type | Terminatio type |
| P aestimavit (kW) | 0.4 |
| Rated torque (N·m) | 1.27 |
| Instantaneus maximus torques (N·m) | 5.08 |
| Ratum current (Arms) | 2.5 |
| Momentum maximum current (Arms) | 10.1 |
| Celeritas rated (rpm) | 3000 |
| Maximam celeritatem (rpm) | 7000 |
| Momentum inertiae (kg·cm2) | 0.54 (0.55) |

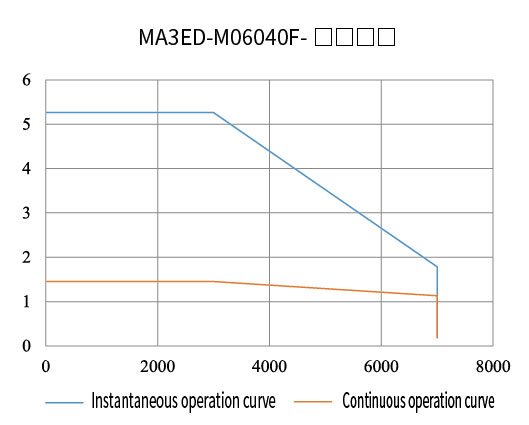

| T-N curva (Y-axis: torque N·m) (X-axis: celeritas rpm) | |
| LL | 88.5 (118) |
| LR | 30 |
| LA | 70 |
| LZ | 4-φ5.5 |
| LH | 45.3 |
| LC | 60 |
| LE | 3 |
| S | 14 |
| LB | 50 |
| TP | M5×10 |
| LK | 25 |
| KH | 11 |
| KW | 5 |
| W | 5 |
| T | 5 |
| LG | 6.5 |
| LJ | 1.5 |

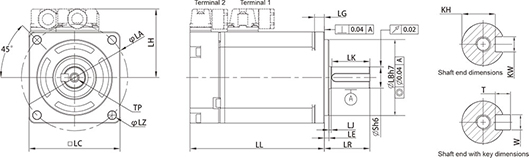

| Sine fregit | |

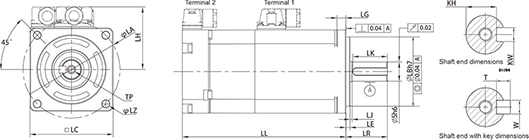

| Cum fregit | |
*Pro singulis exemplaribus in aliis parametris, placere ad electionem manualem vel ad ministerium emptoris consulere.
