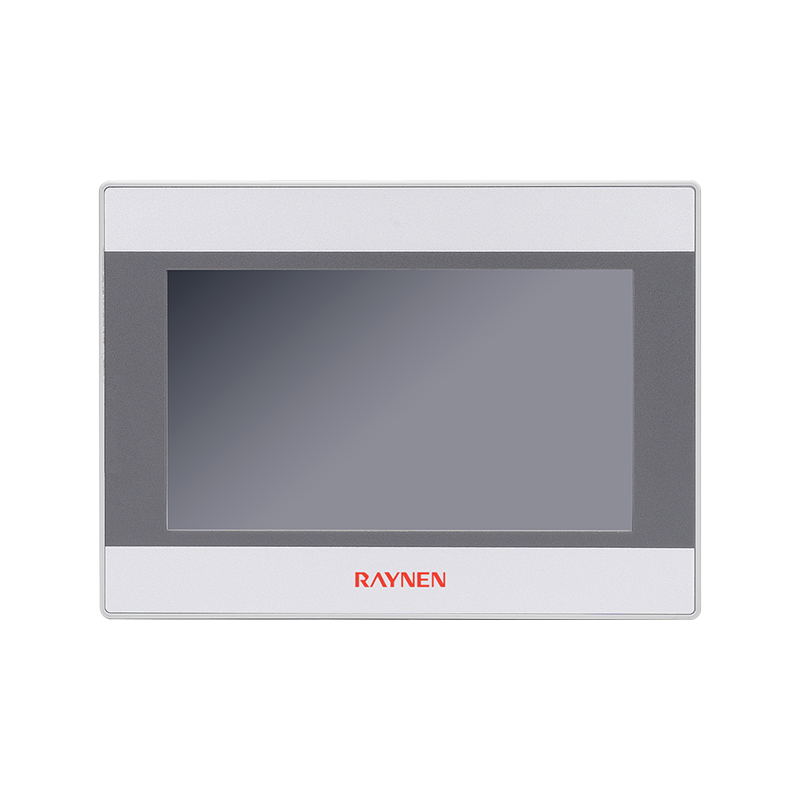

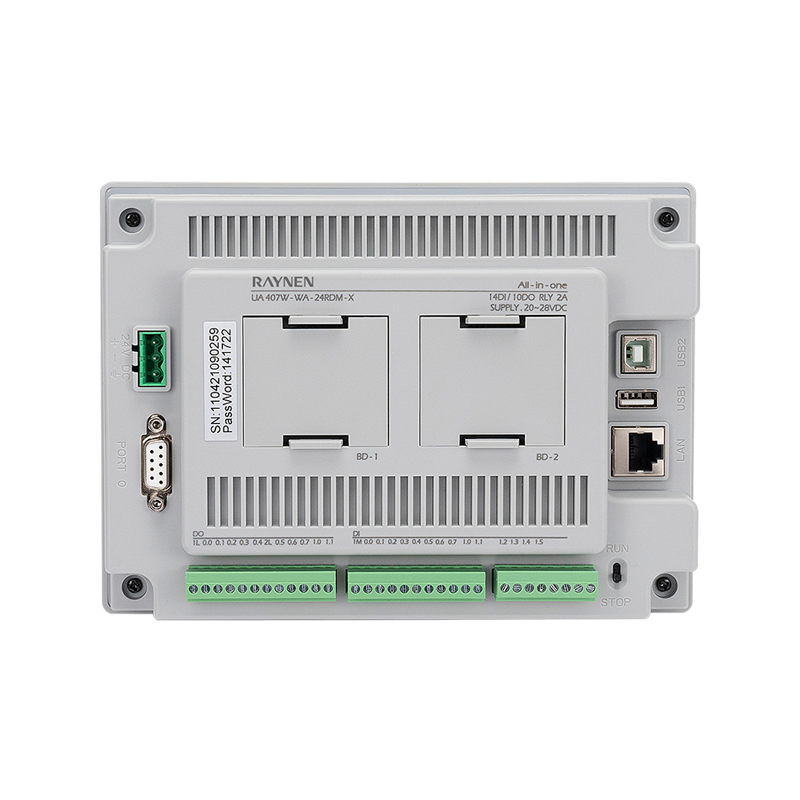

Product Summary
| | • Munera interreti industrialis subsidia et remotius operari possunt; • Portus retis protinus HMI et PLC programmata facilia extrahere potest; • Summa corporis quantitates digitales et analogas sustinet, quae proinde seligi possunt; • Sustinet 2 BD versiones expansiones ad varias necessitates in-situm molliter accommodare; • PLC pars programmandi Iaponica stili utitur |
Commodum
| | | |
| 1GHz | BD Extension | RAM 256M/Flash 256M |
| Maximum celeritatem, lenis usus | Variorum BD tabularum junctiones | Magna capacitas, repositio notitiarum massivarum |
| | | |
| | | |
| Retiacula portum download | RS485 | Diversi programmandi ambitus |
| Portus Network PLC et HMI possunt download programmata | Vide externum support fabrica | Support Iaponica programming |
| | | |
| |  | |
| USB HOST | Luae Script | IoT' |
| HMI progressio et copia notitia update | Scripta subsidia magis diversae operationes | Support Internet industriae Rerum, remota vigilantia |
Magnitudo (unitas: mm)
Specification
| Ordo numerus | UAE 407W WA-24RDM-X | UAE 407W WA-18RAM-X | UAE 407W WA-24TDM-X | UAE 407W WA-18TAM-X | |
| HMI specifications | |||||
| LCD screen | 7″ TFT | ||||
| Propono color | 65535 colores | ||||
| Resolution | 1024×600 | ||||
| Backlight type | IPS | ||||
| Claritas ostenta | 400cd/㎡ | ||||
| Backlight vitae | > (XX) horis | ||||
| Genus tactus | IV-genus resistentiarum filum | ||||
| Processor | R16, 1GHz | ||||
| Repono | 256MB FLASH 256MB DDR3 | ||||
| USB Host | USB2.0 1, Typus A (USB1), sustinet U orbis firmware et configurationem renovatio | ||||
| USB servus | N/A | ||||
| Ethernet | 10/100M adaptive | ||||
| Programmatio software | Uniface | ||||
| PLC Part | |||||
| Memoria | UN Series | Programma 16K Data 10K | |||
| X Series | Programma 32K | ||||
| Totalis numerus timers | UN Series | Summa 256, 4 1ms, 16 10ms, 236 100ms | |||
| X Series | Summa 512, 260 1ms, 46 10ms, 206 100ms | ||||
| Summa calculis | 256 | ||||
| Horologium | inaedificata | ||||
| Potestas-off retentione | Support | ||||
| Communicationis interface | PORT0: PPI/MODBUS/LIBERALITAS (3-RS485, 8-RS485-) PORT1: Support PPI (Built-in) | ||||
| Locus insertus digitalis input | 14 Input 24VDC | 10 Input 24VDC | 14 Input 24VDC | 10 Input 24VDC | |
| Input genus | PNP/NPN | ||||
| Summus celeritate numerus | Sustinet 2-modo 20KHz unius periodi initus, seu 1-modo 20KHz AB periodo initus | ||||
| Locus insertus digitalis output | 10 Output, Nullam | 8 Output, Nullam | 10 outputs, transistor NPN | 8 outputs, transistor NPN | |
| Ratum vena per punctum [maximum] | 1Hz | 1Hz | 50Hz 2 | 50Hz 2 | |
| Pulsus output | - | 4AI | - | 4AI | |
| Analog initus localis integralis | - | XII bits | - | XII bits | |
| Resolution | - | 0-20mA | - | 0-20mA | |
| Current initus | - | 0 ad 32000 | - | 0 ad 32000 | |
| Data forma verbi plena rhoncus rhoncus | - | 2AO | - | 2AO | |
| Loci integrated Analog output | - | XII bits | - | XII bits | |
| Consilium plena eu range | - | Voltage 0-10V Current 0-20mA | - | Voltage 0-10V Current 0-20mA | |
| Signum range | - | 0 ad 32000 | - | 0 ad 32000 | |
| Data forma verbi plena rhoncus rhoncus | | | | | |
| BD tabula expansion | Sustinet ad II BD boards | ||||
| Rostra servitium | |||||
| VPN remotis download | Support | ||||
| Remota notitia magna | Support D real-time data | ||||
| Turbato per metum dis | SMS / WeChat / Phone / APP | ||||
| Specificationes electricae | |||||
| Potentia copia | 24V DC | ||||
| Power | 8W | 9W | 8W | 9W | |
| Characteres structurae | |||||
| Casing color | Gray | ||||
| Materia Casing | Abs PC plastic | ||||
| Dimensiones | 203 149 60 (mm) | ||||
| Foramen magnitudine | 192 x 138 (mm) ; | ||||
| Pondus | De 1.2kg | ||||
| operating temperatus | 0 ~ 50℃ | ||||
| Praesidium campester | Ante panel IP65 | ||||
Wiring Diagram
