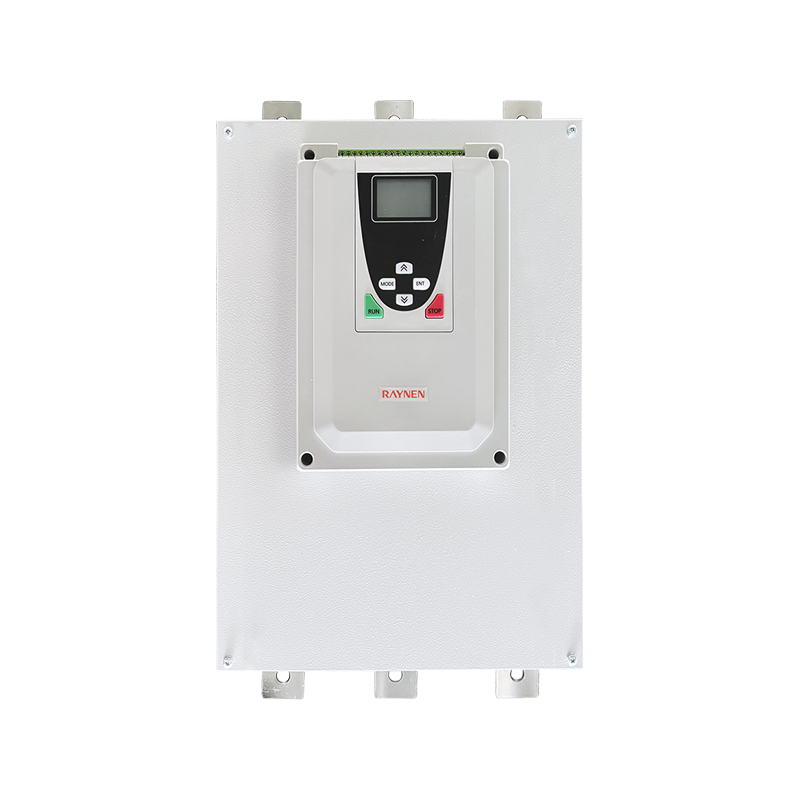

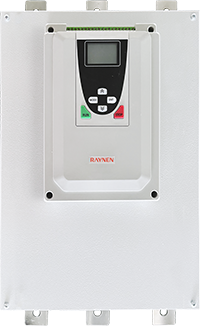

Product Summary
Specifications
 | Parametric | |
| Model | RSE-T3-132-O ~ RSE-T3-200-O | |
| Bypass Type | Online bypass genus | |
| Voltage | 380V | |
| Acta motoris virtutis (kW) | 132/160/85/200 | |
| Rated output current (A) | 264/320/370/400 | |
| Dimensiones (mm) | 574* 348*248 | |
| Installation size (mm) | 493*280 | |
Product Overview
| | Imperium independens potestas copia (220VAC), ambitus occasus etiam sine copia copiarum (380V) fieri potest. |
| | Post contactorem bypassim remoto nullus est modus contactus contactoris et vita servitus longior |
| | Compatible cum contactoribus externis, flexibilius ad usum et ad applicationes latius aptas |
 | Motor onerat non-traditional agitare potest sicut calentium motricium, resistentia onerat et transformer onerat |
 | Contactores solidi status perfecte reponere potest, ac insuper munera mollia incepta et mollia desinentia praebere |
 | Connexionem internam motorum sustinet, motoribus aptissima cum specificationibus maioribus |
Wiring et Terminals
Exemplar Nomenclature
Electio Tabula
| Exemplar (380V) | Acta motricium virtutis ( kW ) | Ego de (A) | Dimensiones H*W*D (mm) | Installation size (mm) | |
| H1* W1 | Apertura | ||||
| RSE-T3-7-O | 7.5 | 15 | 342*200-214 | 299*145 | M6 |
| RSE-T3-11-O | 11 | 23 | |||
| RSE-T3-15-O | 15 | 30 | |||
| RSE-T3-18-O | 18.5 | 37 | |||
| RSE-T3-22-O | 22 | 45 | |||
| RSE-T3-30-O | 30 | 60 | |||
| RSE-T3-37-O | 37 | 75 | |||
| RSE-T3-45-O | 45 | 90 | |||
| RSE-T3-55-O | 55 | 110 | |||
| RSE-T3-75-O | 75 | 150 | 443*243*248 | 392* 180 | M8 |
| RSE-T3-90-O | 90 | 180 | |||
| RSE-T3-110-O | 115 | 230 | |||
| RSE-T3-132-O | 132 | 264 | 574* 348*248 | 493*280 | M10 |
| RSE-T3-160-O | 160 | 320 | |||
| RSE-T3-185-O | 185 | 370 | |||
| RSE-T3-200-O | 200 | 400 | |||
| RSE-T3-250-O | 250 | 500 | 600*430*283 | 519*340 | M10 |
| RSE-T3-280-O | 280 | 560 | |||
| RSE-T3-320-O | 320 | 640 | |||
Euismod & configurationis
| Characteres electrica | |
| Rated imperium potentia copia | Single-phasma 220VAC±15%, 50/60Hz |
| Rated potentia copia voltage | Three-fash 380V~ 480V (-10%~ 15%) |
| Rated potentia copia frequentia | 50Hz vel 60Hz |
| Multis imperii temporibus | 3 |
| Lorem motricium | Aeschyli cavea tres tempus inductionem motricium / asynchronous motricium |
| Satus frequency | Conditiones onus dependet. Commendatur incipere et desinere non plus quam 10 vicibus per horam sub condicionibus normalibus et 6 vicibus per hora sub onere gravi |
| Satus modus | Aggerem intentione, ramp current, modus current, inching, agger currens modus, subitus saltus voltage aggerem |
| Subsisto modus | Free stop, mollis stop |
| Munus tutelae | Praesidium amissum phase, supercurrentis tutela, oneris praesidium, inaequilibrium current praesidium, exustum praesidium, initium timeout praesidium, undervoltage/overvoltage protection, start over frequency protection, high current protection, thyristor naufragii praesidium, potentia e contrario serie praesidium, erroris praesidium, etc. |
| Environmental notae | |
| operating temperatus | -10℃ ~ 40℃ (40℃ ~ 60℃ opus est ad facultatem reducendi) |
| Repono temperatus | -25℃ ~ 70℃ |
| Relativum humiditas | XCV% nulla condensatione vel cadendo |
| altitudo | Infra 1000m (1000~3000m facultatem reducendi opus est) |
| Modus refrigerandi | Coactus aeris refrigerationem |
| modum institutionem | Murus conscendit |
| Other | Non flammabiles, explosivae, vel exedrae vapores, nullus prolixivus pulvis vel pulveris metallicus |
| Signa et Certification | |
| Exsequendam signa | GB/T14048.6 |
| Certification | CCC |
