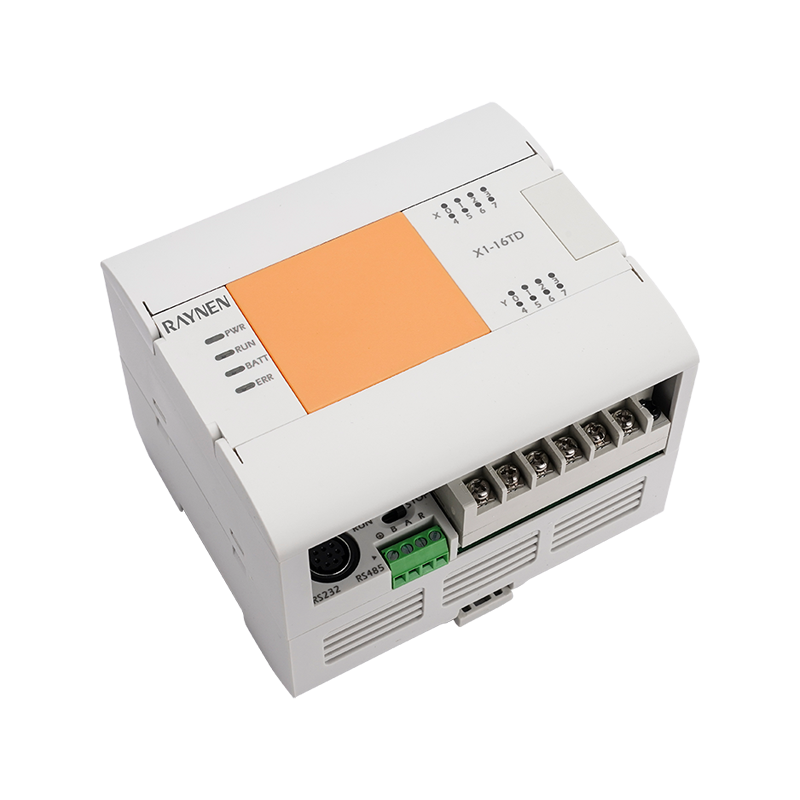

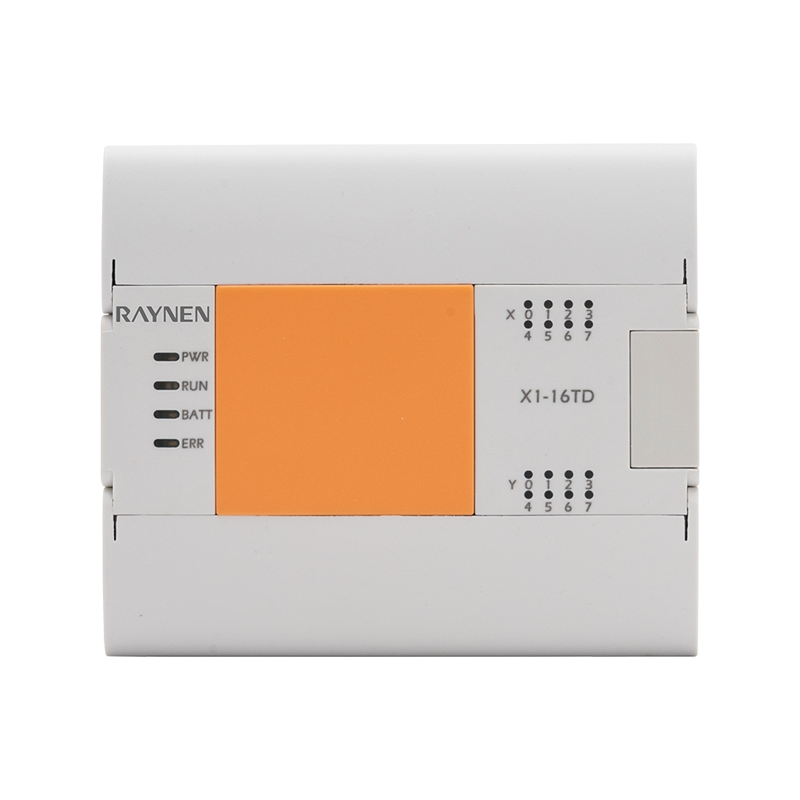

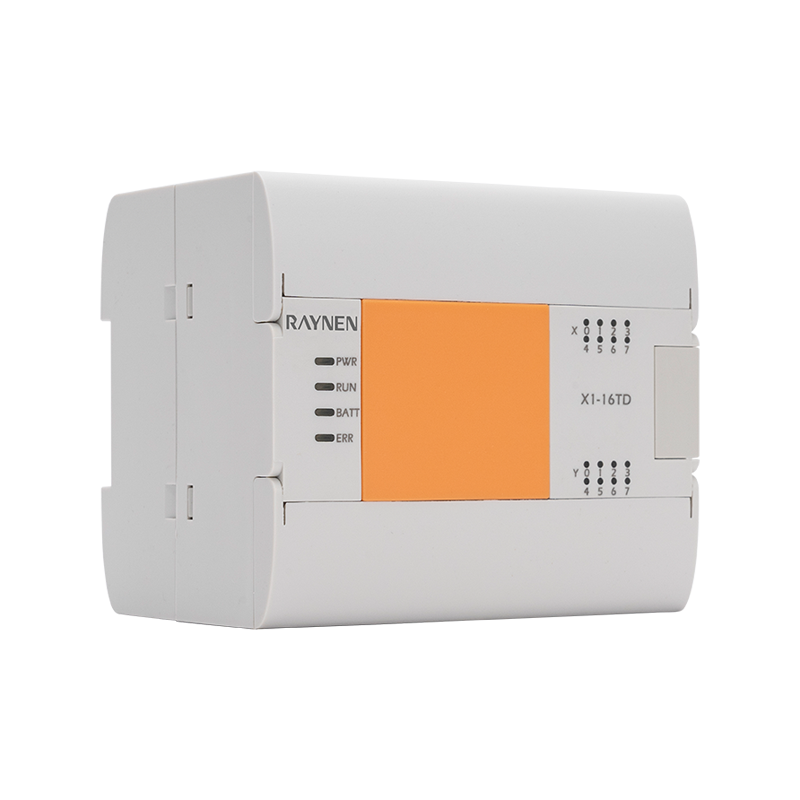

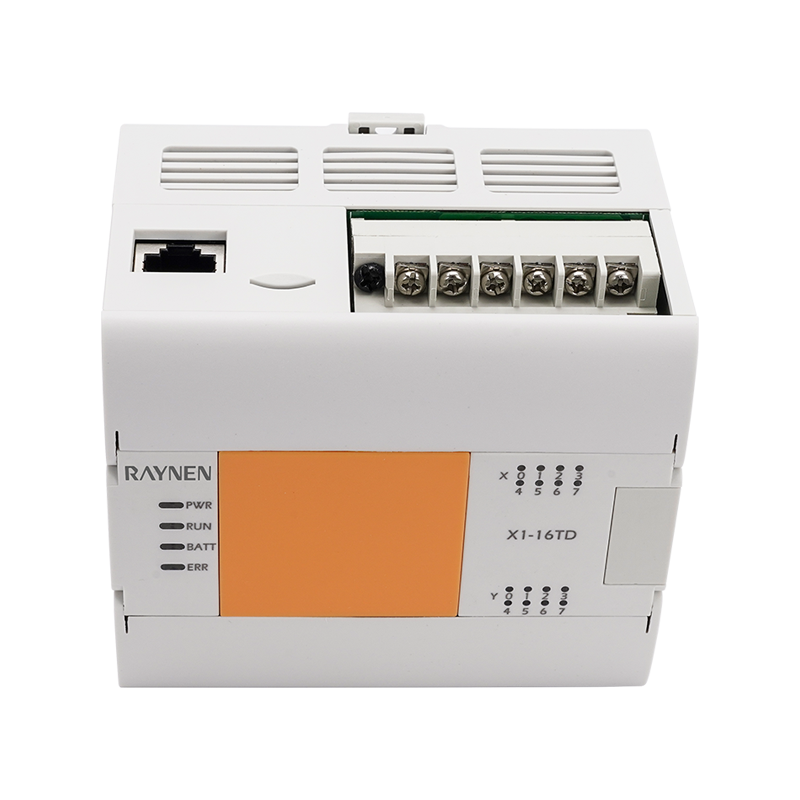

Product Summary
|
| • Motu simplici functiones moderativae sicut outputa legumina et celeritas computationis • Cum summa celeritate computatis, 3-axis 100kHz pulsus summus velocitas output et alia motus moderandi functiones (Libitum) • Horologium reale, data potestas-off tabularium permanentium • sustinet unam tabulam BD |
Commodum
| | | |
| Interface | Initus / output | BD tabula |
| Integrated network port RS232/485 | II-alveum summus celeritate contra 2-axis 60K pulsus summus celeritas 3-axis 100kHz pulsus summus celeritas (Libitum) | Support I BD tabulam |

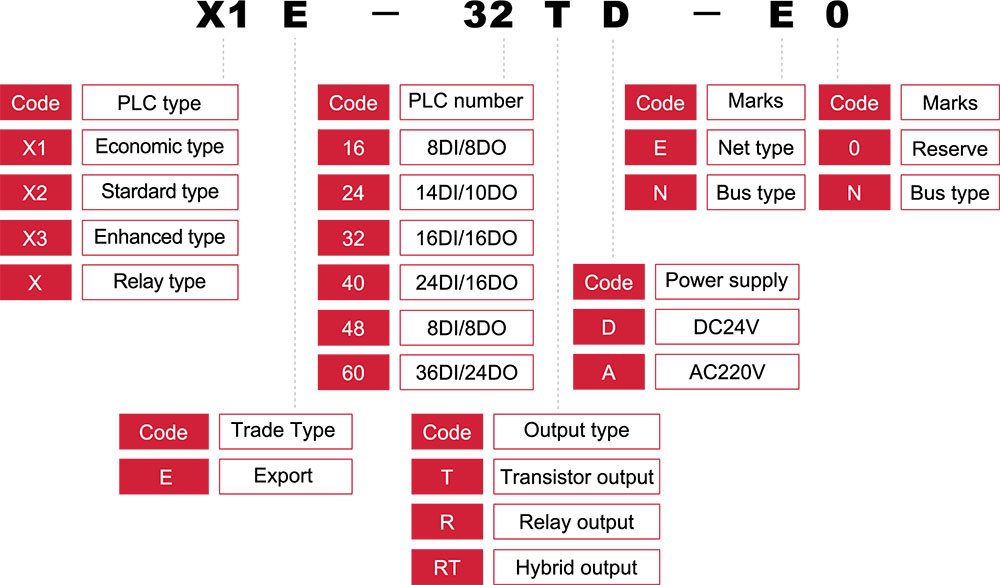

Exemplar Nomenclature

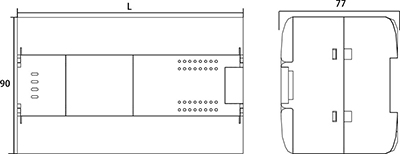

Magnitudo (unitas: mm)
 |
|
Parameter
| Item | Power Specifications | ||||
| X1E-16TD | X1E-24TD | X1E-32TD | X1E-40TD | X1E-60TD | |
| Virtus consummatio | 6W | 7W | 8W | 9W | 11W |
| Potentia copia voltage | DC24V | ||||
| Potentia copia voltage range | DC20.4~28.8V | ||||
| licet in instanti potentia deficiendi tempus | Nam potentia transeuntis outages infra 5ms, operatio permanebit | ||||
| Virtus copia fuse | 60V 2A | ||||
| Surge current | 12A, 0.5ms Infra/28.8V DC | ||||
| DC24V potentia copia | Infra 300mA | ||||
| Lorem opus temperatus | -10℃~60℃ (horizontalem institutionem), -10℃~50°℃(perpendiculum institutionis) | ||||
| Lorem environment temperatus | -20℃~ 80°C | ||||
| Ambiens humiditas relativa | 5~ 95%, non densans (R?H level 2, conform lEC61131-2); | ||||
| Praesidium campester | IP20 | ||||
| Electromagnetica convenientiae | suppressio sonitus, conformlEC61000-6-2 | ||||
| Mechanica gradu (vibrationis) | IEC60068, Part2-6/10up58Hz | ||||
| sustinere voltage | AC1.5kV 1 min, Inter utramque terminalem et terram terminalem | ||||
| AC500V 1 min, Inter utramque terminalem et terram terminalem | |||||
| Nulla resistentia | Post resistentiam metri velitationis cum DC500V mensuratus, plus quam 5MΩ inter utramque terminalem et terram terminalem | ||||
| Grounding | Typus D præcomprehensio (resistentiae fundans: minus quam 100Ω), commune cum valido systemate currenti non patitur | ||||
| Usus environment | Nullus mordax, gas flammabilis, pulvis conductivus (pulvis) non est gravis | ||||
| Usus altitudinis | 2000M Infra (in ambitu pressionis supra atmosphaericis pressionis adhiberi non potest, aliter fieri potest) | ||||
| Item | Power Specifications | |||||
| X1E-16TD | X1E-24TD | X1E-32TD | X1E-40TD | X1E-60TD | ||
| Input numerus | 8 | 14 | 16 | 24 | 36 | |
| Summus celeritate numerus | Signum pascha 60KHz (2 way) AB pascha 30KHz (1 via) | |||||
| Genus initus connect | Terminus amovibilibus obstructionum (cochlea M3) | |||||
| Input genus | Sink type/fonte Type | |||||
| Signum initus voltage | DC potentia: DC20.4V~28.8V | |||||
| Input impedimentum | X0-X2 | 2.4K | ||||
| X3 supra | 5.6K | |||||
| De initus inductionis current | X0-X2 | 5mA supra | ||||
| X3 supra | 2.4mA supra | |||||
| Off input inductionem current | 1mA infra | |||||
| Input responsio tempus | Non plus quam 4.5ms | |||||
| Signum initus forma | Nulla intentione contactus initus | |||||
| Sink input: NPN publicanus transistor | ||||||
| Solitudo initus loop | Fons input: PNP transistor open-collector | |||||
| Optocoupler solitudo | ||||||
| Ostentationem initus actus | DUXERIT super tabulam inluminat cum optocoupler expellitur | |||||
| Item | Power Specifications | |||||
| X1E-16TD | X1E-24TD | X1E-32TD | X1E-40TD | X1E-60TD | ||
| Output numerus | 8 | 10 | 16 | 20 | 24 | |
| Pulsus frequency (Max) | Singulus terminalis 2 scapi 60KHz | |||||
| Output connect genus | Terminus amovibilibus obstructionum (M3 Screw) | |||||
| Output type | Transistor/exhaurire output | |||||
| Virtus externa copia | DC5~30V | |||||
| Max onus | Resistentia onus | 0.5A/punctum unum; 0.8A/4 punctum | ||||
| Onus inductivum | 12W/DC24V | |||||
| Lucerna onus | Alta celeritas: 2W/DC24V, communis: 5W/DC24V | |||||
| Proin onus | 5mA (DC5~24V) | |||||
| Open ultrices current | 0.1mA infra/DC30V | |||||
| in-resistentia | Maximum celeritate punctum 0.3Ω valorem typicum (Max 0.6Ω) | |||||
| Responsum tempus | ON → ON | Alta celeritas: 10us infra / 10mA supra (DC5 ~ 24V) | ||||
| Communia: 0.2ms infra/200mAabove (DC24V) | ||||||
| DE → ON | Alta velocitas: 10us infra / 10mA supra (Dc5 ~ 24V) | |||||
| Communia: 0.2msbelow/200mAabove(DC24V) | ||||||
| loop solitudo | Optocoupler solitudo | |||||
| Ostentationem de actionibus output | DUXERIT super tabulam inluminat cum optocoupler expellitur | |||||
| Persona tradenda procul | 500M (commune output) | |||||
| detegitur tradenda procul | 150M (commune output) | |||||
Software pars opibus
| Item | Euismod | |||
| Modus operational imperium | Modus saepe faciendi programmata servata (dedicata LSl) cum functione interrupt | |||
| Initus / output imperium modus | Batch processus modus (exsequens finem instructionis), input et output reficiendi disciplinam, pulsus munus captas | |||
| Lingua programmandi | Nullam figurae modus gradus scalae modus (per SFC repraesentari potest) | |||
| Real-time horologium | Horologium munus | Constructum in 2000-2099, annuus error non plus quam V minuta / XXV ° C | ||
| Programma memoria | Max memoria facultatem | 32000 gradus per parametris constitui possunt, scribe commentarios et tabulas in programmatis memoriae | ||
| Inaedificata in memoriam capacitatem/exemplar | MMMCC gradus / ram memoria, Password tutis | |||
| Praesent munus in CURSUS | No | |||
| Instructionis genus | Basic disciplinam | 27 genus Sequential instructiones, 2 genus gradus scalae diagrammatis instructiones | ||
| Applicationem disciplinam | 218 species 497 type | |||
| Arithmetica celeritas dispensando | basic mandatum | 0.065μs/instructiones | ||
| Initus / output numerus | Numerus initus punctorum pro extenso usu | 256 punctum | Summa initus et output puncta non excedunt CCLVI puncta | |
| Numerus output puncta for extenso usu | 256 punctum | |||
| Nullam input-output | Nullam input | 256 punctum | Initus et output summa CCLVI puncta | |
| Nullam output | 256 punctum | |||
| Nullam auxiliares | Communia | M0~M7679 | 7680 punctum | Communia/retention Settings can be changed through parameters |
| Retentio | M500~M1023 | 524 punctum | ||
| publicae | Communia | S0~S4095 | 4096 punctum | Communia/retention Settings can be changed through parameters |
| Retentio | S500~S999 | 500 punctum | Communia/retention Settings can be changed through parameters | |
| Timer | 100ms type | T0~T199 | 200 punctum | 0.1~3276.7s |
| 10ms type | T200~ T245 | 46 punctum | 0.01~ 327.67s | |
| 1ms cumulativo | T246~ T249 | 4 punctum | 0.001~32.767S | |
| 100ms cumulativo | T250~T255 | 6 punctum | 0.1~3276.7s | |
| 1ms type | T256~T511 | 256 punctum | ||
| Counter | Generalis augendae | C0~C99 | 100 punctum | 0.001~32.767s |
| (16-bit) [Mubilis] | Communia/retention Settings can be changed through parameters | |||
| Retentio increasing (16-bit) [mutabilis] | C100~C199 | 100 punctum | ||
| Communia duplexing | C200~C219 | 20 punctum | Communia/retention Settings can be changed through parameters | |
| (32 bis) | ||||
| Retentio duplexing (32 bit) [mutabilis] | C220~C255 | 36 punctum | ||
| Data actis mandare | Communia | D0~D7999 | (VIII) punctum | Communia/retention Settings can be changed through parameters |
| Retentio | D200~511 | 312 punctum | ||
| Expansion mandare | Principalis imperium | P0~P1023 | 1024 punctum | CJ command-Call imperium usus est |
| Ponter | Principalis imperium | NO~N7 | 8 punctum | MC imperium usus est |
| Nidum | Principalis imperium | 16 bit | -32,768~ 32,767 | |
| publicae | X Decimal Number (K) | 32 bit | -2,147,483,648~ 2,147,483,647 | |
| XVI hexadecimali numero (H). | 16 bit | 0~FFFF | ||
| 32 bit | 0~FFFFFFFF | |||
| Verus numerus (E) | 32 bit | -3.40×10-38 ~ -1.17×10-38, 1.17×10-38 ~3.40x1038 | ||
| Mores chordae ("") | Mores filum | Specificare cum characteribus in """". maxime de XXXII dimidium-anguli characteres potest esse in constant per disciplinam | ||
Summus celeritate contra
| Input Distributio | Una pars una contra | AB Phase counter | |||||
| C235 | C236 | C237 | C243 | C244 | C251 | C252 | |
| X0 | U/D | | | U/D | | A | A |
| X1 | | U/D | | R | | B | B |
| X2 | | | U/D | | U/D | R | |
| X3 | | | | | R | |
|
