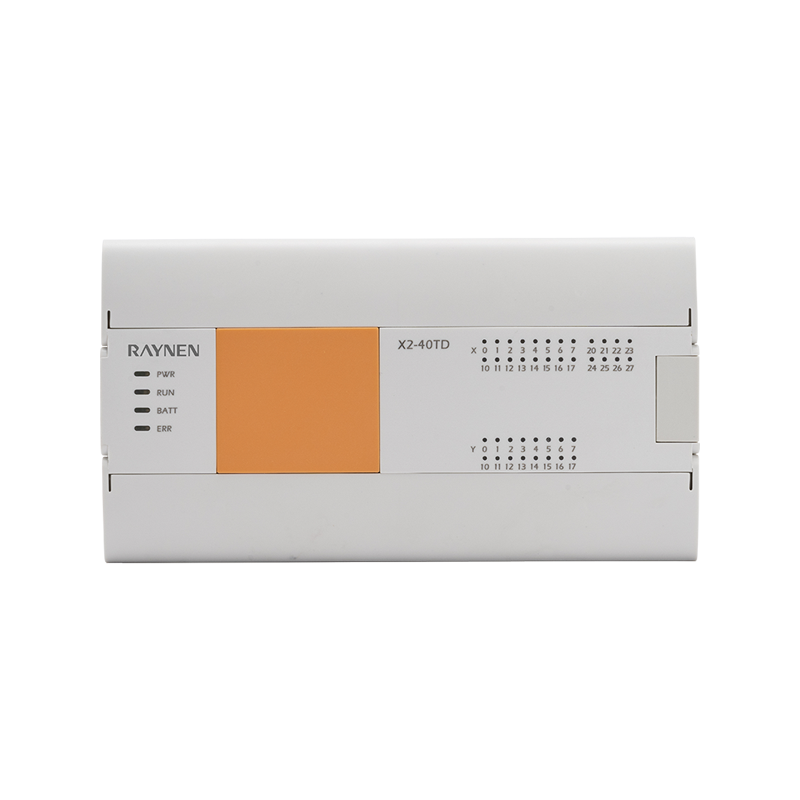

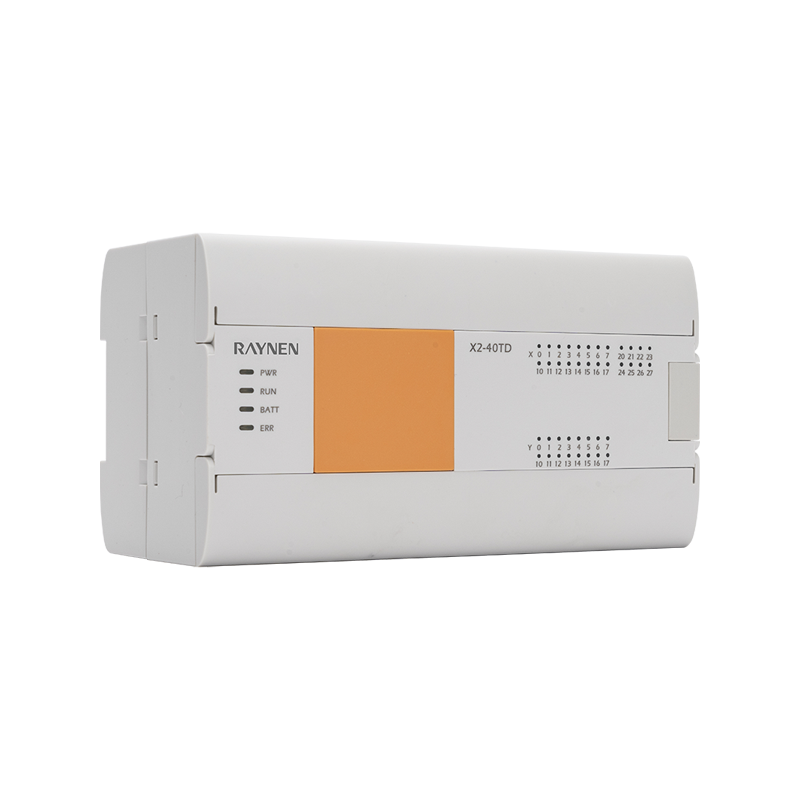

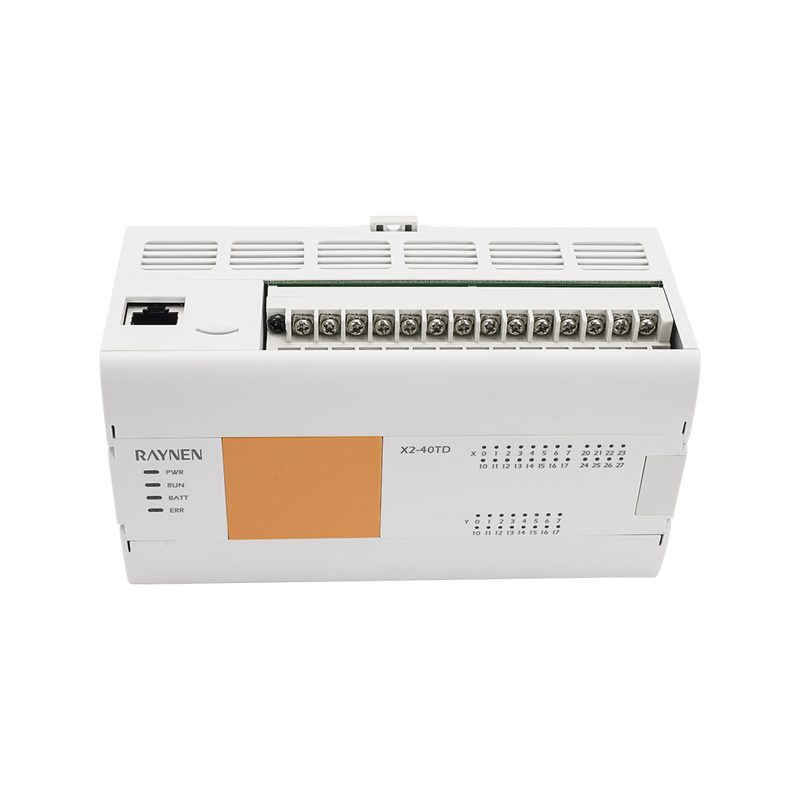

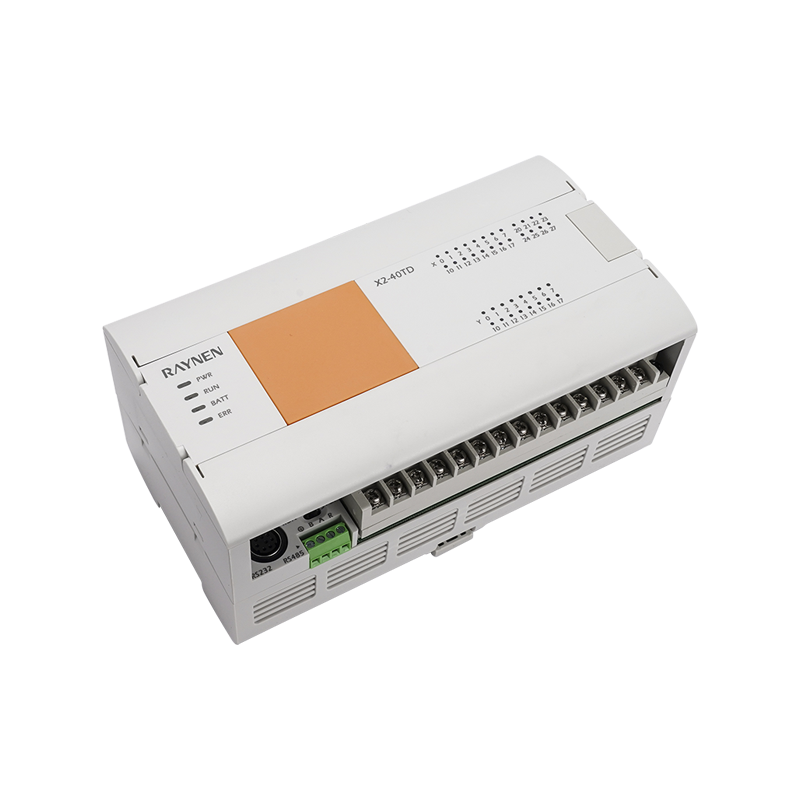

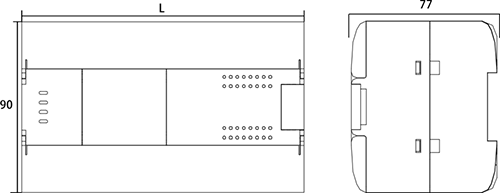

X2 Standard programmable logic controller

•  Cum interpolatione lineari, duo-axis summus velocitatis pulsus output summus velocitatis computatio et munus aliud motus moderandi

•  Horologium reale, potestas eu data perpetuo condita est

•  Sustentat tabulam expansionem BD ac usque ad 7modules dilatare potest

Interface

Initus / output

Expansion Card

BD tabula

Integrated network port RS232/485

II-alveum summus celeritate contra

2-axis 60K pulsus summus celeritas

Expanded Max VII modules

Support I BD tabulam

Item

Power Specifications

X2E-24TD

X2E-32TD

X2E-40TD

X2E-60TD

Potentia Voltage

10W

12W

12W

14W

Voltage range

DC24V

Patitur in instanti potentia eu tempus

DC 20.4~28.8V

Virtus fuse

Nam potentia transeuntis outages infra 5ms, operatio permanebit

Impetus current

60V 2A

DC24V data potestate

12A, 0.5ms infra/28.8V DC

DC5V constructum-in potestate

300mA infra

Item

Power Specifications

X2E-24TD

X2E-32TD

X2E-40TD

X2E-60TD

Input numerus

14

16

24

36

Summus celeritate contra

Unius Phase 200KHz[3 pcs], AB Pascha 100KHz[3 pcs]

Input genus

Submerge genus / source type

Signum initus voltage

DC source type: DC20.4V~28.8V

Input impedimentum

X0-X5

3.3K

X6-X7

5.6K

3.3K

X10 supra

-

5.6K

De initus inductionis current

X0-X5

5mA supra

X6-X7

4mA

5mA supra

X10 supra

-

4mA supra

Off input inductionem current

1mA infra

Input responsio tempus

4.5ms

Signum initus forma

Nulla intentione contactus initus

Sink input: NPN publicanus transistor

Fons input: PNP transistor open-collector

Solitudo initus loop

Optocoupler solitudo

Ostentationem initus actus

DUXERIT in tabula illuminat cum optocoupler depellitur

Item

Power Specifications

X2E-24TD

X2E-32TD

X2E-40TD

X2E-60TD

Output numerus

10

16

16

24

Pulsus frequency (Max)

Singula finita 2-axis 200K

Output type

Transistor/Leaky output

Virtus externa copia

DC5~30V

Max onus

Resistentia onus

0.5A/way

Onus inductivum

12W/DC24V

Lucerna onus

5W/DC24V

Proin onus

5mA (DC5~24V)

Responsum tempus

ON → ON

Alta velocitas: 5μs infra / 10mA supra (DC5~24V)

Communia: 0.2ms infra/200mAabove (DC24V)

DE → ON

Alta velocitas: 5μs infra / 10mA supra (DC5~24V)

Communia: 0.2ms infra/200mAabove(DC24V)

loop solitudo

Optocoupler solitudo

Ostentationem de actionibus output

DUXERIT in tabula illuminat cum optocoupler depellitur

Item

Euismod

Nullam input X

256 punctum

X0~X377

Nullam output Y

256 punctum

Y0~Y377

Nullam auxilia M

7680 punctum

M0 ~ Claustrum initio (Ponite potestatem off non-tenere area)

Claustrum satus ~ pessulus finem (Ponite potestatem hold area, Max M1023)

Claustrum finis ~ M7679 (Fixum imperium hold area)

Nullam auxiliares speciales SM

512 punctum

SM8000~SM8511

Nullam Status S

4096 punctum

S0~S4095

timer T *

200 punctum

T0~ T199 (100ms base Time)

T192 ~ T199 (Subroutine specialis)

46 punctum

T200~ T245(10ms base time)

4 punctum

T246~ T249(1ms genus cumulativum)

6 punctum

T250~ T255(100ms genus cumulativum)

256 punctum

T256 ~ T511 (1ms base time)

Contra 16 bit

200 punctum

C0~C199

Contra 32 bit

56 punctum

C200~C234

Summus Volo contra

-

C235~C255

D actis mandare

(VIII) punctum

D0~D7999

Praecipua notitia subcriptio SD

512 punctum

SD8000~SD8511

Index registri

16 punctum

V0~V7, Z0~Z7

Expansion mandare

32768 punctum

R0~R32767

Indicium

4096 punctum

P0~P4095

interrupit

6 punctum

I00 ** I50 * Input interrupt

3 punctum

I6 *** I8 ** Morbi interpellare

6 punctum

I010 ~ I060 Summus celeritas contra interrupt

Dominus imperium cum nidificatione

8 punctum

N0~N7

assidue K *

-

16 bis range: -32768~ 32767, 32 bit range: -2147483648~ 2147483647

constant H *

-

16 frenum range: 0~FFFF, 32 frenum range: 0~FFFFFFFF

Verus numerus (E)

-

-3.40×10-38~ -1.17×10-38  , 1.17x10-38~3.40×1038

Mores filum

-

Maxima longitudo dimidii angularis characteribus efficta a " " est 32 characteribus

Input

Distributio

Unum tempus unius contra

AB Phase counter

AB Phase counter

C235

C236

C237

C238

C239

C240

C243

C244

C246

C247

C248

C249

C251

C252

C253

C254

X0

U/D

U/D

U

U

A

A

X1

U/D

R

D

D

B

B

X2

U/D

U/D

U

R

R

A

X3

U/D

R

D

S

B

X5

U/D

S

U

A

X6

U/D

D

B
